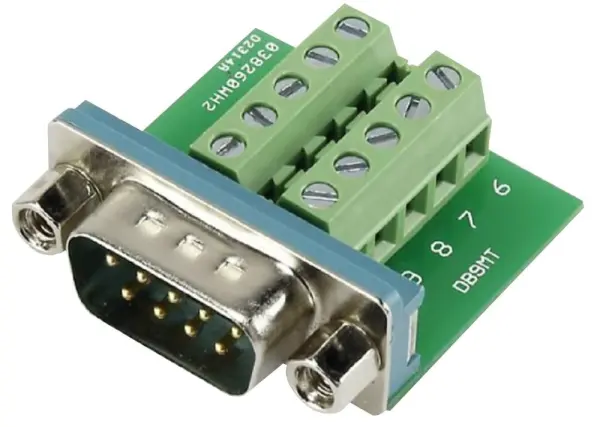

Clever Little BOX D-Sub 9 Pin Screw Terminal Plug Connector

The Clever Little BOX CLB-DSUB09M-10TB-2 is a compact and reliable 9 pin D-sub plug connector designed for secure screw terminal termination. This standard DE shell size connector provides a straightforward solution for custom cabling and panel connections, eliminating the need for soldering or specialised crimping tools.

With 9 contacts and screw-type termination, this plug ensures a firm and dependable electrical connection. It has a rated voltage of 30Vdc and a rated current of 0.5A, making it suitable for low-power signal and control applications. The contact resistance is a maximum of 30mΩ, while the insulating resistance is a minimum of 100mΩ at 500Vdc, contributing to consistent performance.

Built for a wide temperature range of -40°C to 85°C, this connector is suitable for use in demanding environments. Its compact dimensions — width 22mm, height 33mm, and depth 2mm — allow for space-efficient integration into your projects. The product weighs just 12 grams, adding minimal bulk to your assembly.

Whether you are building a custom interface, prototyping, or repairing equipment, this D-sub plug connector offers a practical and reliable choice. Clear labelling and a robust construction ensure easy identification and long-term durability in your application.

Specifications

• Connector Type: Standard D-sub plug
• No. of Contacts: 9
• Shell Size: DE
• Contact Termination: Screw
• Rated Voltage: 30Vdc
• Rated Current: 0.5A
• Contact Resistance: 30mΩ max.
• Insulating Resistance: 100mΩ/500Vdc min.
• Operating Temperature: -40°C to 85°C
• Dimensions: 22mm (W) x 33mm (H) x 2mm (D)
