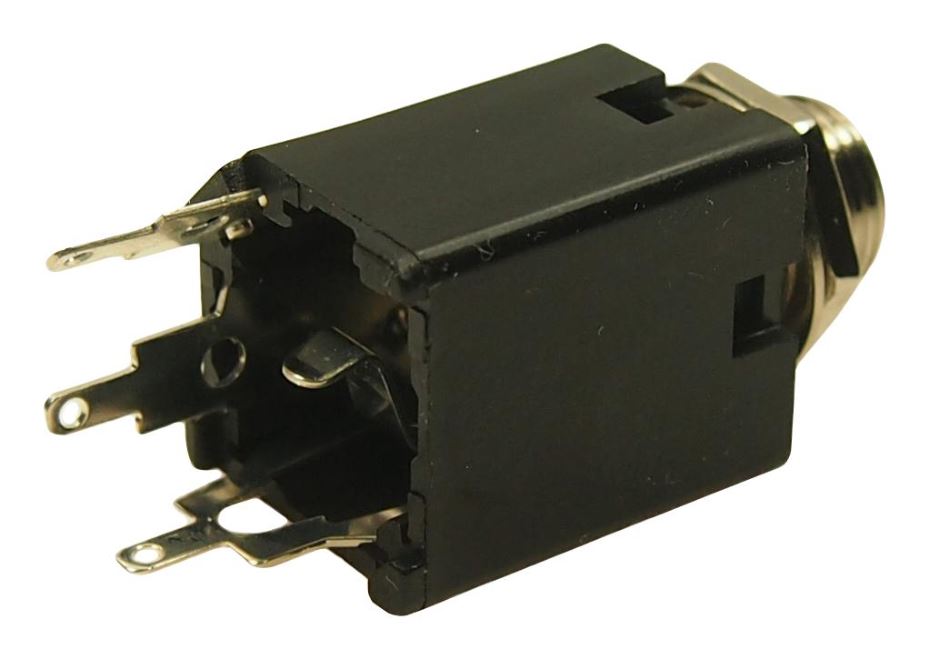

Cliff 6.35mm (1/4 inch) Vertical Mono Jack Socket, PCB Mount
High-quality Cliff 6.35mm vertical PCB mount mono jack with switching contact. Ideal for audio & industrial applications.
The Cliff 6.35mm (1/4 inch) Vertical Mono Jack Socket (FM6704) is a high-quality PCB-mounting socket designed for reliable audio and signal connections. With a durable nylon (polyamide) body and snap-in PCB mounting, this jack socket ensures robust performance in various electronic applications.
Key Features
- Vertical PCB mounting with 24 mm stand-off for high packing density and space-efficient installation.
- Snap-in PCB mounting facilitates pre-assembly and wave soldering for efficient manufacturing.
- Auto-insertion compatible body design for streamlined production processes.
- 1 switching contact and 1 breaking contact for flexible circuit control options.
- High electrical performance with a withstand voltage of 2000V DC and a maximum current of 5A.
- Longevity with a rated lifecycle of at least 10,000 operations.
Technical Specifications
- Gender: Jack
- Pin Diameter: 6.35mm (1/4 inch)
- Contact Resistance: <50mΩ
- Temperature Range: -10°C to +70°C
- Connector Material: Nylon (Polyamide)
- Product Range: S1VS
Ideal for audio equipment, amplifiers, and industrial control systems requiring a reliable mono jack connection, this vertical mount jack combines durability, performance, and ease of integration.
- Audio equipment
- Amplifiers
- Effects pedals
- Industrial control systems
- Pin Diameter: 6.35mm (1/4 inch)
- Mounting Style: Vertical PCB
- Stand-off Height: 24mm
- Withstand Voltage: 2000V DC
- Maximum Current: 5A
- Contact Configuration: 2 contacts (1 switching, 1 breaking)
- Lifecycle: 10,000+ operations
- Contact Resistance: <50mΩ
- Temperature Rating: -10°C to +70°C
- Connector Material: Nylon (Polyamide)
- Weight: 900 grams
Always follow local regulations and product guidance.
