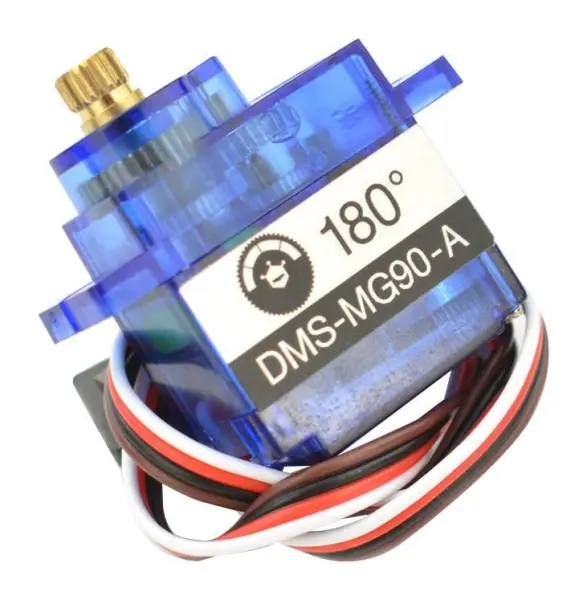

DFROBOT 6V Servo Motor, 20g

The DFROBOT SER0047 is a compact, high-performance 6V servo motor engineered for precision and durability. Featuring a robust metal gear set, it offers superior longevity and strength compared to traditional plastic gear servos. This design ensures reliable operation under load, making it a dependable component for demanding applications.

With a substantial torque output of up to 1.5 kg/cm (1.47 N-m) and a wide rotational range, this servo delivers powerful and accurate movement control. Its exceptionally small footprint, measuring just 0.9 x 0.48 x 1.28 inches, allows it to be integrated into the tightest of spaces in micro-robots and compact mechanisms.

A key feature is its flexible control; lacking an internal limit switch, it can be manually configured for either standard 180-degree operation or continuous 360-degree rotation, offering great versatility for custom projects. Despite its power, the servo is highly efficient, with low power consumption that allows it to be reliably powered by common batteries or a standard USB power supply.

Ideal for professional makers, robotics enthusiasts, and educational projects, it provides stable, accurate performance for precise control in micro-robotics, model making, and automated systems.

Technical Specifications:

• Pulse Width Range: 500 to 2500 µs
• Neutral Position: 1500 µs
• Dead Bandwidth: ≤ 5 µs
• Operating Angle: 180° ± 5° (500 to 2500 µs)
• Maximum Travel: 220° ± 10°
• Rotation: Clockwise
• Gear Type: Metal
• Dimensions: 33 mm (W) x 43 mm (H) x 15 mm (D)
• Weight: 20 grams
