DFROBOT TB6612FNG Dual 1.2A DC Motor Driver Gravity

The DFROBOT Gravity: Dual 1.2A DC Motor Driver is a compact and efficient solution for controlling two micro DC motors. Designed around the reliable TB6612FNG chip, it inherits the L298N control logic, allowing you to drive two motors with just four GPIO pins. The Gravity connector simplifies wiring, making it ideal for use with the Gravity IO expansion board for seamless integration with Arduino UNO and similar platforms.

With a maximum continuous drive current of 1.2A per channel and peak currents of 2A (continuous pulse) / 3.2A (single pulse), it delivers robust performance. The on-board standard XH2.54 pins can be plugged directly into a breadboard for prototyping convenience. The module operates with VCC from 2.7V to 5.5V and VM power input from 2.5V to 12V, offering flexibility for various motor voltages.

Key Features

• Dual full-bridge drive chip (TB6612FNG) for two motors
• Gravity connector for fast, solderless connections
• Code-compatible with DFROBOT L298N motor driver
• XH2.54 headers for direct breadboard use
• Compact size: 40mm x 40mm

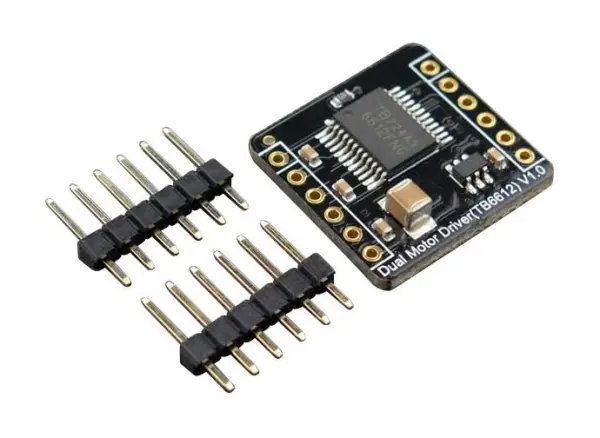

Package Contents

• 1x DC Motor Driver (TB6612FNG)
• 2x XH2.54 6-Pin Headers

This driver provides a simple, effective way to add precise motor control to your next project.
