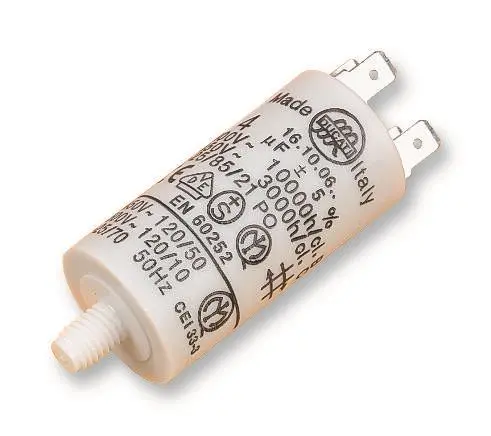

DUCATI Motor Run Film Capacitor, 5 µF, 450 V AC, Snap-In

The DUCATI 4.16.10 Series Motor Run Film Capacitor is engineered for reliability and long-term performance in demanding motor control applications. It features a metalised polypropylene (PP) film dielectric, with electrodes formed from an ultra-thin metallic coating applied via vacuum evaporation. This construction ensures low losses and a non-inductive winding, contributing to efficient motor operation and reduced energy waste.

A key safety and reliability feature is the capacitor's self-healing property. This allows the dielectric to locally 'repair' minor electrical breakdowns, effectively avoiding short circuits and extending the component's operational life. The capacitive element is securely sealed with polyurethane resin, while the case and cover are manufactured from self-extinguishing plastic material, providing robust physical and safety protection classified as Class-P0.

Designed for practicality, this capacitor combines a small size and limited weight with snap-in (quick connect) terminals for straightforward and secure installation. The sealed design eliminates any risk of leakage, ensuring stable performance and safe integration into your systems.

Key Specifications & Features

• Capacitance: 5 µF with a tight tolerance of ±5%.
• Rated Voltage: 450 V AC, suitable for main motor run duties.
• Termination: Quick-connect snap-in terminals for easy wiring.
• Dielectric: Metallised Polypropylene (PP) Film.
• Self-Healing: Automatically isolates minor faults to prevent failure.
• Safety Class: Class-P0 protection with a self-extinguishing plastic case.
• Construction: Non-inductive winding with low losses, sealed with resin.
• Dimensions (L x W x H): 43mm x 33mm x 15mm.
• Lead Spacing: 14.4mm.
• dv/dt Rating: 20 V/µs.
• Operating Temperature Range: -25°C to +70°C.

This high-quality D
