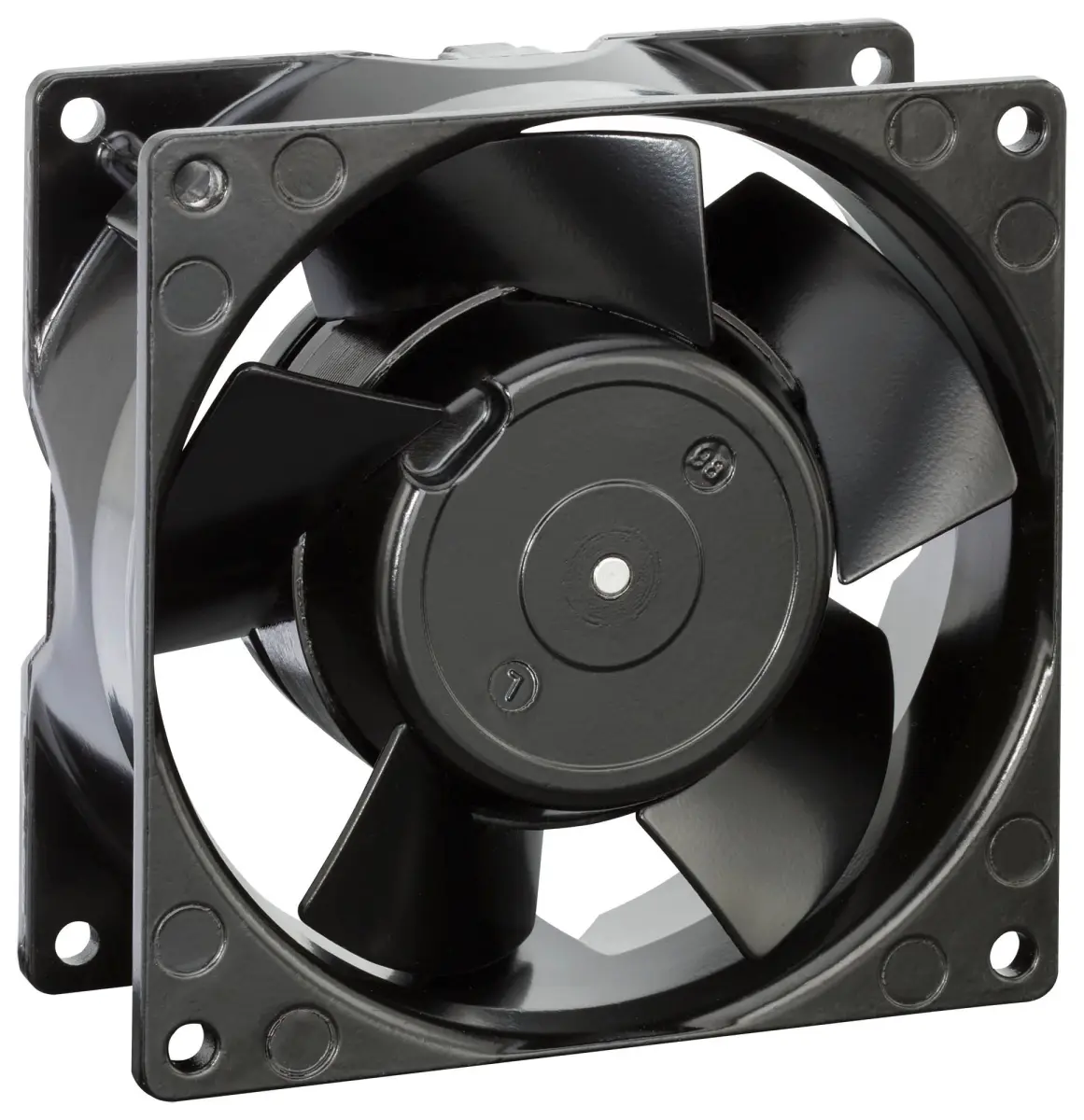

EBM-PAPST 230V AC 2-Pin Ball Bearing Axial Fan 92 x 92 x 38mm
EBM-PAPST 230V AC ball bearing axial fan, 92mm square frame. Delivers 44.1 CFM at 37dBA, 2700rpm. IP54/IP68 rated with 2 lead wire connection.
The EBM-PAPST 230V AC Ball Bearing Axial Fan features an external rotor motor design, where the fan blades are directly attached to the external rotor, providing a compact and efficient cooling solution. Built upon extensive development expertise, this fan is suitable for both 50Hz and 60Hz operation.
Delivering an airflow of 44.1 CFM (1.25 m³/min) at a rated speed of 2700 rpm, this fan ensures effective ventilation while maintaining a noise level of 37 dBA. It is equipped with a ball bearing system for operational stability and connects via a 2 lead wire terminal power connection for straightforward installation.
The fan has a square frame size of 92mm and offers IP54 and IP68 protection ratings, making it suitable for environments where resistance to dust and water is necessary. The nominal rated voltage is 230V AC, and it belongs to the EBM-PAPST 3000 product range. The product dimensions are 43mm in height, 33mm in width, and 15mm in depth, with a weight of 435 grams.
Key Specifications
- Nominal Rated Voltage: 230V AC
- Fan Frame Type: Square
- Fan Frame Size: 92mm
- Bearing Type: Ball Bearing
- Air Flow: 44.1 CFM (1.25 m³/min)
- Noise Rating: 37 dBA
- Rated Speed: 2700 rpm
- Power Connection: 2 Lead Wires
- IP Rating: IP54, IP68
- Operating Frequency: 50Hz or 60Hz
- Product Range: 3000
This axial fan provides a reliable cooling mechanism, integrating the motor and impeller into a single unit to save space and optimise performance in various electronic and industrial setups.
