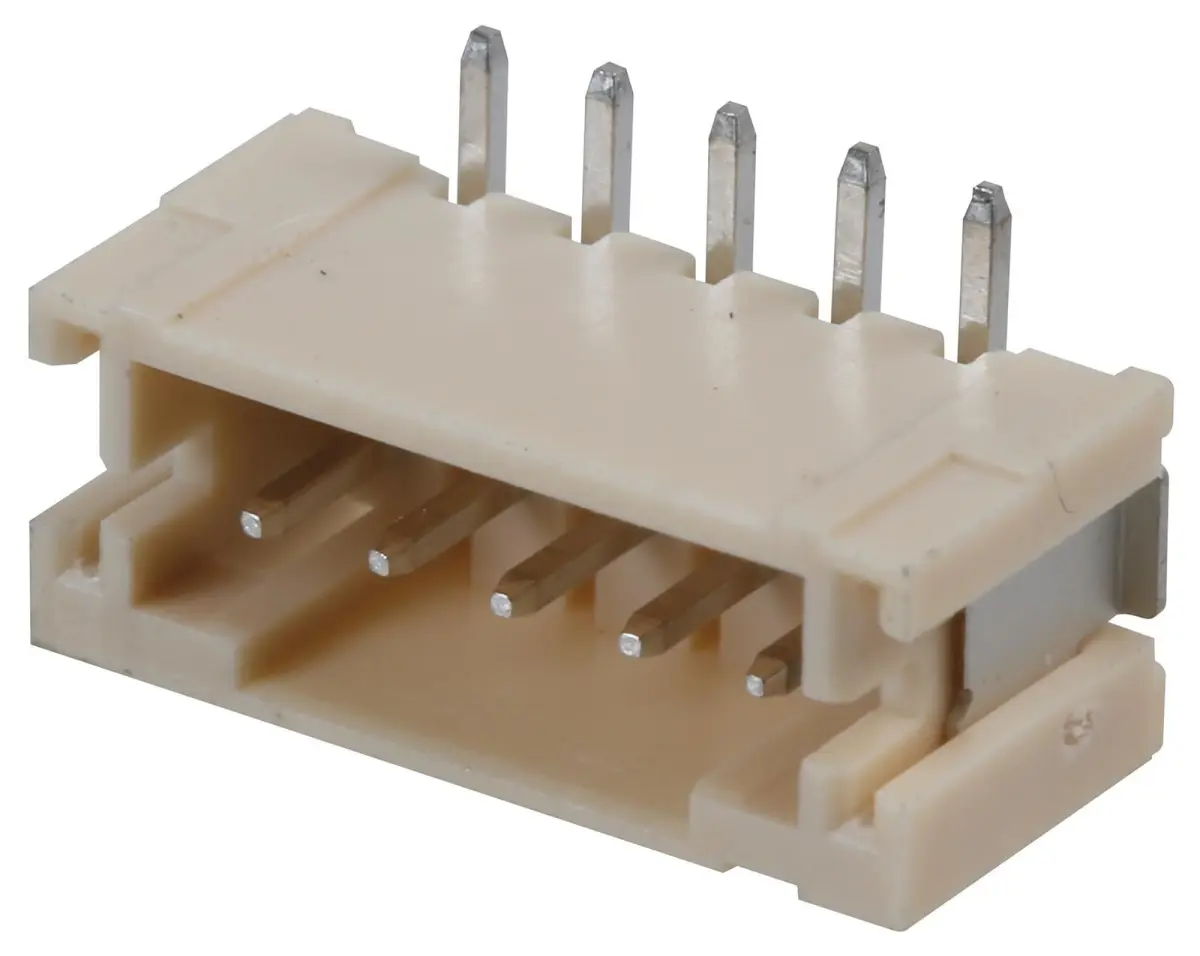

EDAC 5 Way Horizontal SMT Mount Header, 2mm Pitch

The EDAC 5 Way Horizontal SMT Mount Header offers a reliable and low-profile solution for creating secure board-to-board or board-to-wire connections within compact electronic assemblies. Engineered with a precise 2mm pitch, this header allows for high-density layouts, making it an ideal choice for modern, space-constrained PCB designs where maximising real estate is crucial.

Its innovative surface-mount right-angle design facilitates a clean edge connection. By mounting directly onto the surface of the PCB, it eliminates the need for through-holes, which can simplify board manufacturing and reduce assembly complexity. The horizontal orientation provides excellent mechanical stability and helps route connections parallel to the board surface, contributing to a streamlined and organised final product.

Constructed from high-quality materials, this header ensures consistent electrical performance and reliable mating with compatible female connectors or sockets. The 5-way configuration provides a balance between connection count and a compact footprint, suitable for a variety of signal and low-power applications.

Key Features & Specifications

• Connector Type: 5-way, horizontal, single-row header
• Mounting Style: Surface-mount (SMT)
• Orientation: Right-angle
• Pitch: 2mm
• Profile: Low-profile for space-saving designs
• Primary Use: Edge connection for compact printed circuit boards (PCBs)
