EDAC 516 38-Way Plug with Screw, 3.81mm Pitch

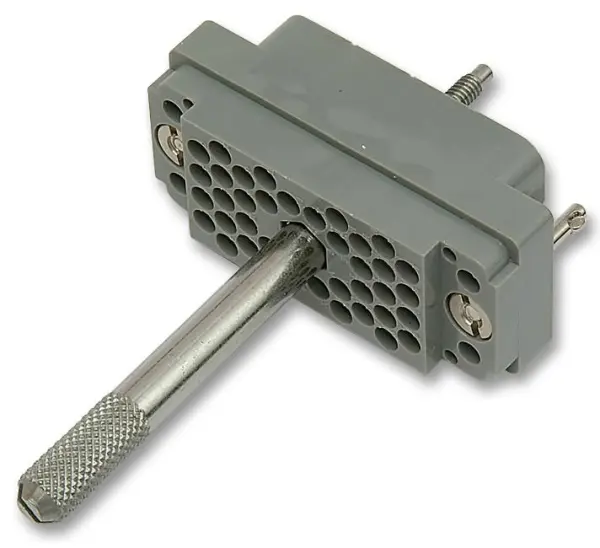

The EDAC 516-038-000-301 is a 38-way plug designed for reliable industrial connections. This 516 series connector features a grey polycarbonate insulator and includes an actuating screw and polarizing hardware to ensure correct alignment and secure mating.

The contacts are made from phosphor bronze alloy with gold over nickel plating for the entire contact surface, providing excellent conductivity and durability. The hermaphroditic contact mating design simplifies the connection process, especially when used with the actuating screws.

Electrical Specifications:

• Current rating: 8.5A
• Maximum contact resistance: 10mΩ
• Dielectric withstanding voltage: 2000VAC at sea level
• Minimum insulation resistance: 5000MΩ

With a 3.81mm pitch spacing, this plug is suitable for a variety of industrial applications. Its compact dimensions (33mm height, 22mm width, 2mm depth) and lightweight design (32g) make it easy to integrate into your systems.
