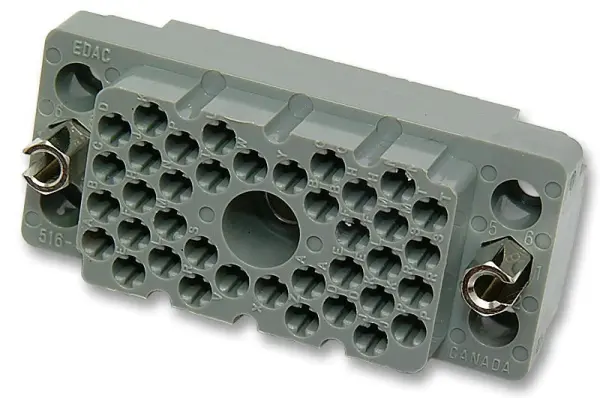

EDAC 90 Way Receptacle with Lock Nut, Panel Mount

The EDAC 90 Way Receptacle with Lock Nut is a high-density interconnect solution designed for demanding equipment where reliable multi-way connections are essential. This 90-way receptacle housing accepts crimped socket contacts, ensuring secure and consistent electrical connections. The integrated lock nut secures the receptacle firmly to the panel, providing stability and preventing loosening due to vibration or mechanical stress.

Ideal for applications that require high pin counts in a compact form factor, this receptacle offers a robust and space-saving solution. The housing is engineered for durability, making it suitable for use in challenging environments where performance and reliability are critical.

Key Features

• 90-way receptacle housing for high-density interconnects
• Accepts crimped socket contacts for secure terminations
• Includes lock nut for firm panel mounting
• Designed for reliable multi-way connections
• Compact dimensions for space-constrained applications
• Lightweight construction at just 29.484 grams

Specifications

• Number of Ways: 90
• Contact Type: Crimp socket contacts
• Mounting Type: Panel mount with lock nut
• Height: 33 mm
• Width: 22 mm
• Depth: 2 mm
• Weight: 29.484 grams

This EDAC receptacle is the ideal choice for engineers and technicians seeking a dependable, high-density connection solution for their equipment.
