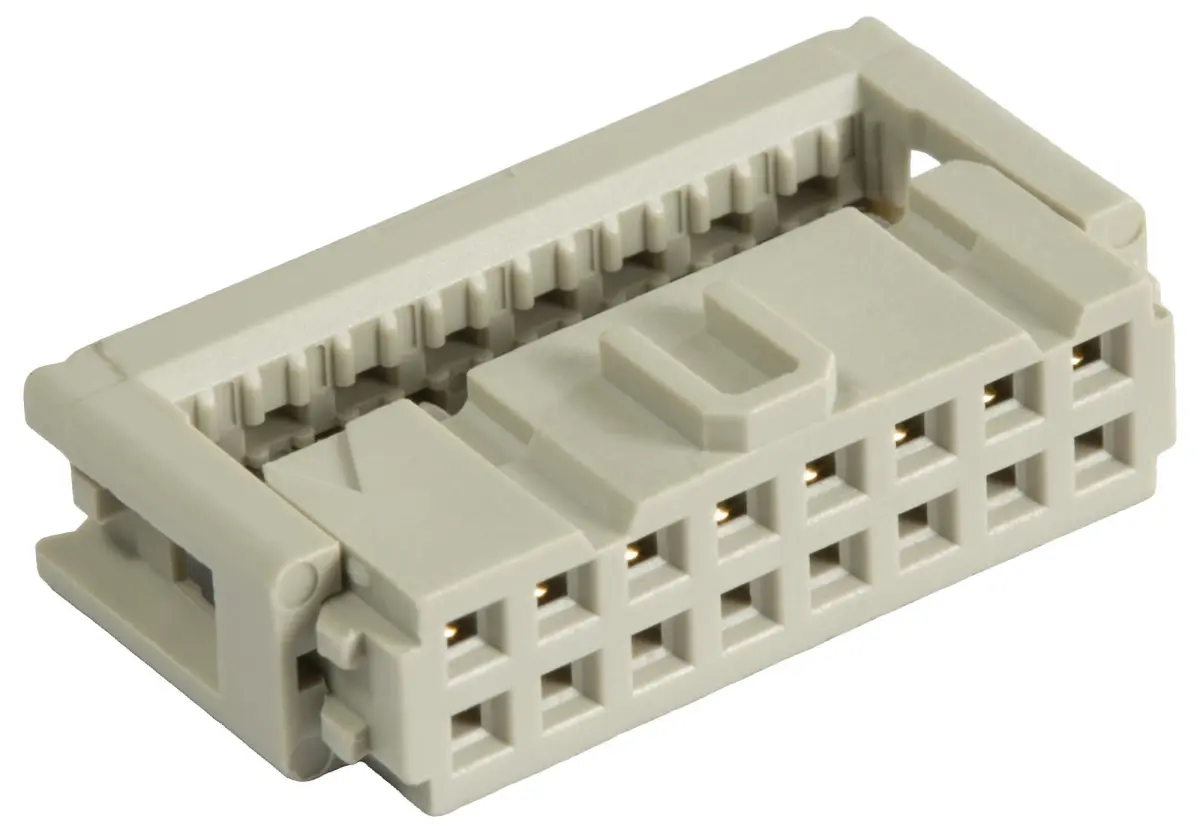

HARTING IDC Receptacle Connector, 2.54mm Pitch, 16 Contacts

The HARTING IDC Receptacle Connector is a precision-engineered female connector designed for rapid and reliable termination of ribbon cables. It utilises an insulation-displacement connection (IDC) technique, which allows for fast assembly without the need for stripping individual wires, significantly reducing installation time and minimising the risk of wire damage.

This connector features a 2.54mm pitch and is arranged in two rows with a total of 16 contacts, making it a standard and versatile choice for a wide range of internal electronic connections. Its cable mount design ensures a secure and stable interface, ideal for creating permanent connections within control panels, computer peripherals, and other electronic assemblies.

Constructed from durable materials, this IDC receptacle offers excellent electrical connectivity and mechanical stability. The compact dimensions allow for efficient use of space on PCBs or within enclosures, while the robust design ensures reliable performance over numerous mating cycles. It is an essential component for anyone involved in electronics manufacturing, prototyping, or repair, providing a professional and time-saving solution for multi-wire cable management.

Key Specifications

• Connector Type: IDC Receptacle (Female)
• Pitch: 2.54 mm
• Configuration: 2 Rows, 16 Contacts
• Mounting Style: Cable Mount
• Connection Method: Insulation-Displacement
• Dimensions (H x W x D): 43 x 33 x 15 mm

This connector is a fundamental part of creating organised and efficient cable harnesses, ensuring signal integrity and reducing assembly complexity in electronic projects.
