HARWIN 2-Row 10-Way Gold-Plated Pin Header, 20 Contacts, 2.54mm Pitch
HARWIN 2-row gold-plated pin header with 20 contacts and 2.54mm pitch. Ideal for reliable board-to-board connections.

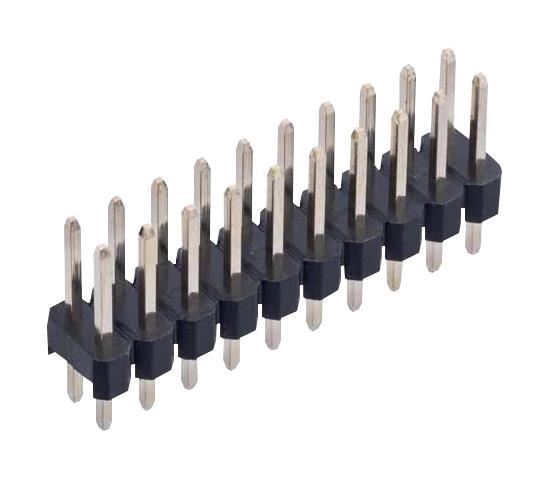

The HARWIN M20-9981045 is a high-quality 20-contact male DIL board-to-board pin header, designed for reliable performance in demanding electronic applications. Featuring gold-plated phosphor bronze contacts and gold-plated terminations, this connector ensures excellent conductivity and corrosion resistance. The black UL94V-0 polyamide (nylon) 6T housing provides durability and meets stringent flammability standards.
Key Features
- 3A Maximum Current Rating: Suitable for low to medium power applications.
- 25mΩ Maximum Contact Resistance: Ensures efficient signal transmission.
- 1000MΩ Minimum Insulation Resistance: Provides reliable isolation between contacts.
- 750VAC/DC Dielectric Strength: Withstands high-voltage environments.
- 300 Operations Durability: Designed for repeated use in industrial and commercial settings.
Applications
Ideal for board-to-board interconnections in a variety of commercial and industrial electronics, the M20 series connector features a 3mm PC tail and vertical orientation for easy through-board mounting. It is compatible with 0.64mm square mating pins, making it versatile for different circuit board designs.
Specifications
- Pitch Spacing: 2.54mm
- Number of Contacts: 20
- Contact Termination Type: Through Hole
- Number of Rows: 2
- Product Range: M20
- Connector Shroud: Unshrouded
- Contact Plating: Gold Plated
- Contact Material: Brass
This pin header from HARWIN is a dependable choice for engineers and hobbyists alike, offering precision, durability, and ease of use in electronic assemblies.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Commercial Electronics
- Industrial Electronics
- Board-to-Board Interconnections
- PCB Assemblies
- Pitch Spacing: 2.54mm
- Number of Contacts: 20
- Contact Termination Type: Through Hole
- Number of Rows: 2
- Product Range: M20
- Connector Shroud: Unshrouded
- Contact Plating: Gold Plated
- Contact Material: Brass
- Housing Material: UL94V-0 Polyamide (Nylon) 6T
- Current Rating: 3A Max
- Contact Resistance: 25mΩ Max
- Insulation Resistance: 1000MΩ Min
- Dielectric Strength: 750VAC/DC
- Durability: 300 Operations
- Suitable Pin Size: 0.64mm Square
- Weight: 900g
