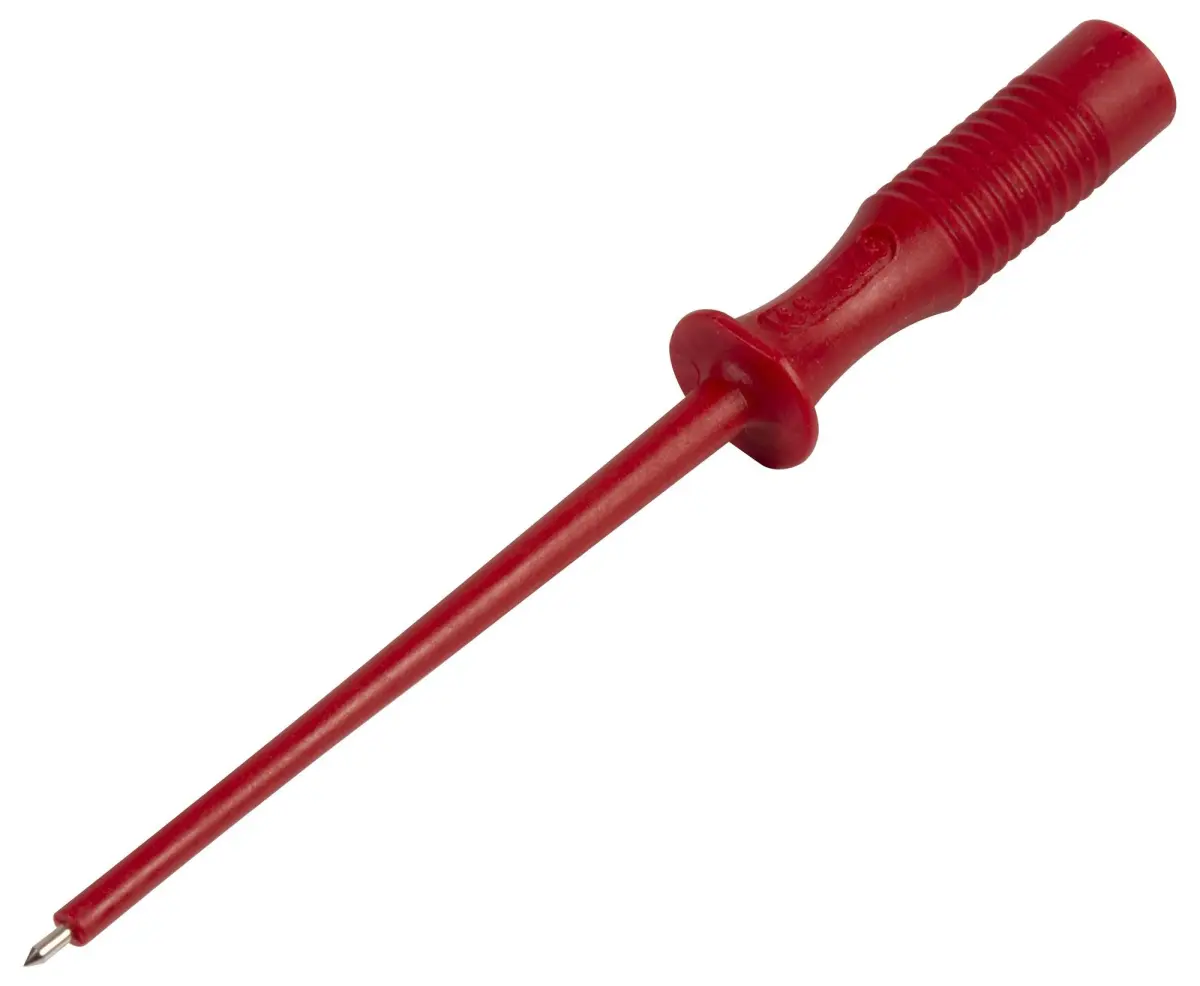

Miniature Test Probe Red, 30V AC/60V DC, 1A

The Miniature Test Probe is a precision instrument engineered for accessing and sampling very small measuring points in electrical circuits. Its design facilitates reliable measurements where standard probes may be too large or cumbersome.

A key feature is the sharp stainless steel tip, which is capable of penetrating insulation and oxide layers to make a solid electrical contact. This ensures accurate readings by reaching the conductor directly, minimising contact resistance. The probe connects via a 2mm diameter gold-plated socket with an integrated contact spring, providing a secure and low-resistance connection to your test equipment.

This probe is rated for use with circuits up to 30V AC or 60V DC and can handle a rated current of 1A. It conforms to measurement category O (CAT O) according to IEC 61010, indicating its suitability for circuits that are not directly connected to mains power, such as electronic circuits, telecommunications, and low-voltage signal lines. The housing is constructed from durable PE material and is coloured red for easy identification.

Designed for normal environmental conditions, it operates effectively within a temperature range of -5°C to +40°C. Its compact and lightweight build makes it an essential tool for detailed diagnostic work in confined spaces.

Specifications

• Voltage Rating: 30V AC / 60V DC
• Current Rating: 1A
• Measurement Category: CAT O (IEC 61010)
• Tip Material: Stainless Steel
• Connection: 2mm gold-plated socket with spring
• Housing Material: PE (Polyethylene)
• Housing Colour: Red
• Operating Temperature: -5°C to +40°C
• Weight: 4 grams
• Dimensions: 43mm (H) x 33mm (W) x 15mm (D)

This specialised test probe is a fundamental component for any professional requiring precision in electrical testing and measurement applications.
