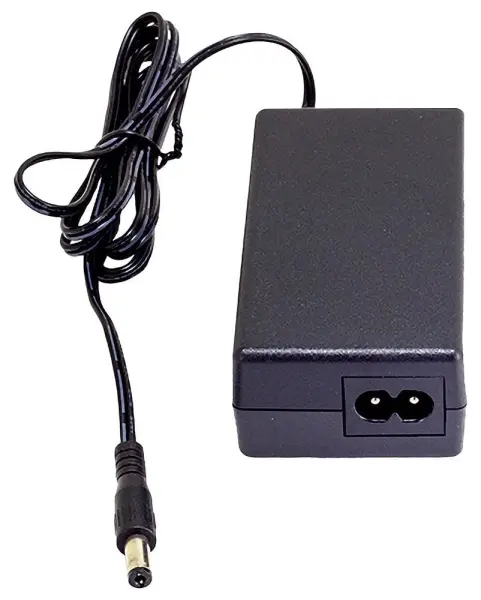

IDEAL POWER 50W 18V 2.8A Desktop Power Supply

The IDEAL POWER 15DYS650-180280W is a reliable 2-pin IEC C8 (Fig 8) AC to DC desktop power supply, delivering a fixed 18V DC output with a maximum power of 50W. It is designed to meet global efficiency standards (Level VI) and is approved to multiple international safety and EMC requirements, including cETLus, TUV-GS, RCM, PSE, CCC, CB, FCC, and CE.

Featuring a universal AC input range from 90VAC to 264VAC, this adapter ensures compatibility with mains supplies worldwide, with an input frequency range of 47/63Hz. The output current is 2.8A with ±5% voltage regulation, and the connector is a standard barrel plug, centre positive, with dimensions of 2.1mm x 5.5mm (12mm insert length).

Engineered for high reliability, this power supply includes built-in protections: OVP (Over-Voltage Protection), OCP (Over-Current Protection), and SCP (Short-Circuit Protection). Each unit is 100% ATE tested and undergoes a smart burn-in test for 4 hours, ensuring consistent performance and durability. The ambient operating temperature range is from 0°C to 45°C, making it suitable for various indoor applications.

With its class II construction (no earth pin) and level VI energy-saving rating, this adapter offers both safety and efficiency. The mains lead is sold separately, allowing flexible installation. The compact design (97.5mm x 52.5mm x 32.3mm) makes it ideal for space-constrained setups.

Applications

• Ideal for ITE (Information Technology Equipment)
• Suitable for devices requiring a stable 18V DC 2.8A supply
• Perfect for use in office, home, and commercial environments

Specifications

• Input Voltage: 90VAC – 264VAC (full range)
• Input Frequency: 47/63Hz
• Input Current: 1.3A max at 90VAC, 0.6A max at 264VAC
• Output Voltage: 18VDC (±5% regulation)
• Output Current: 2.8A
• Output Power: 50W
• Output Connn:
