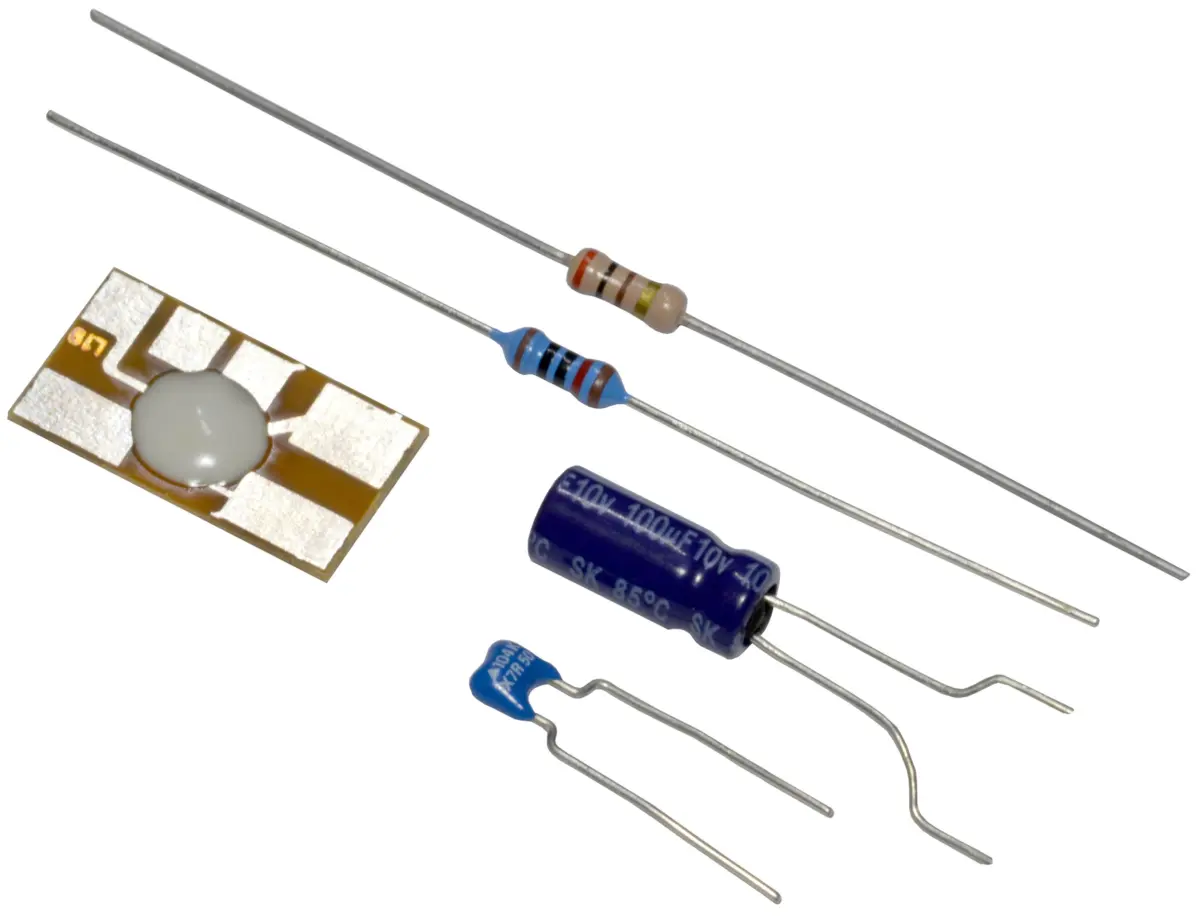

Kemo Alternating Flasher & Running Light Kit for LEDs

The Kemo Alternating Flasher & Running Light Kit for LEDs is a very small, highly integrated flasher unit designed for versatile lighting applications. This compact electronic module offers three distinct operating modes, allowing you to configure it as a standard flasher, an alternating flasher, or a 3-channel running light, depending on your project requirements.

Capable of driving between 1 and a maximum of 6 LEDs, this kit provides excellent flexibility for custom electronics and model building. It operates efficiently on a 3-6V battery, making it suitable for portable or low-voltage setups. The unit features a clock frequency of 3Hz (3 times per second) with a duty cycle of approximately 76ms per channel, ensuring a consistent and visible lighting effect.

Whether you are adding warning indicators, novelty lighting, or scale model effects, this highly integrated module delivers reliable performance. The flashing electronic component measures approximately 18 x 10mm, allowing for straightforward installation in tight spaces. The overall kit dimensions are 40 x 30 x 25mm, and it weighs just 11 grams, ensuring minimal bulk for your project.

Key Specifications

• Operating Voltage: 3-6V battery
• Maximum LEDs: 6
• Clock Frequency: 3Hz (3x per second)
• Duty Cycle: Approx. 76ms per channel
• Flasher Mode: For 1-2 LEDs
• Alternating Flasher Mode: For 1-2 LEDs per channel
• Running Light Mode (3-channel): For 1-2 LEDs per channel
• Flashing Electronic Dimensions: Approx. 18 x 10mm
