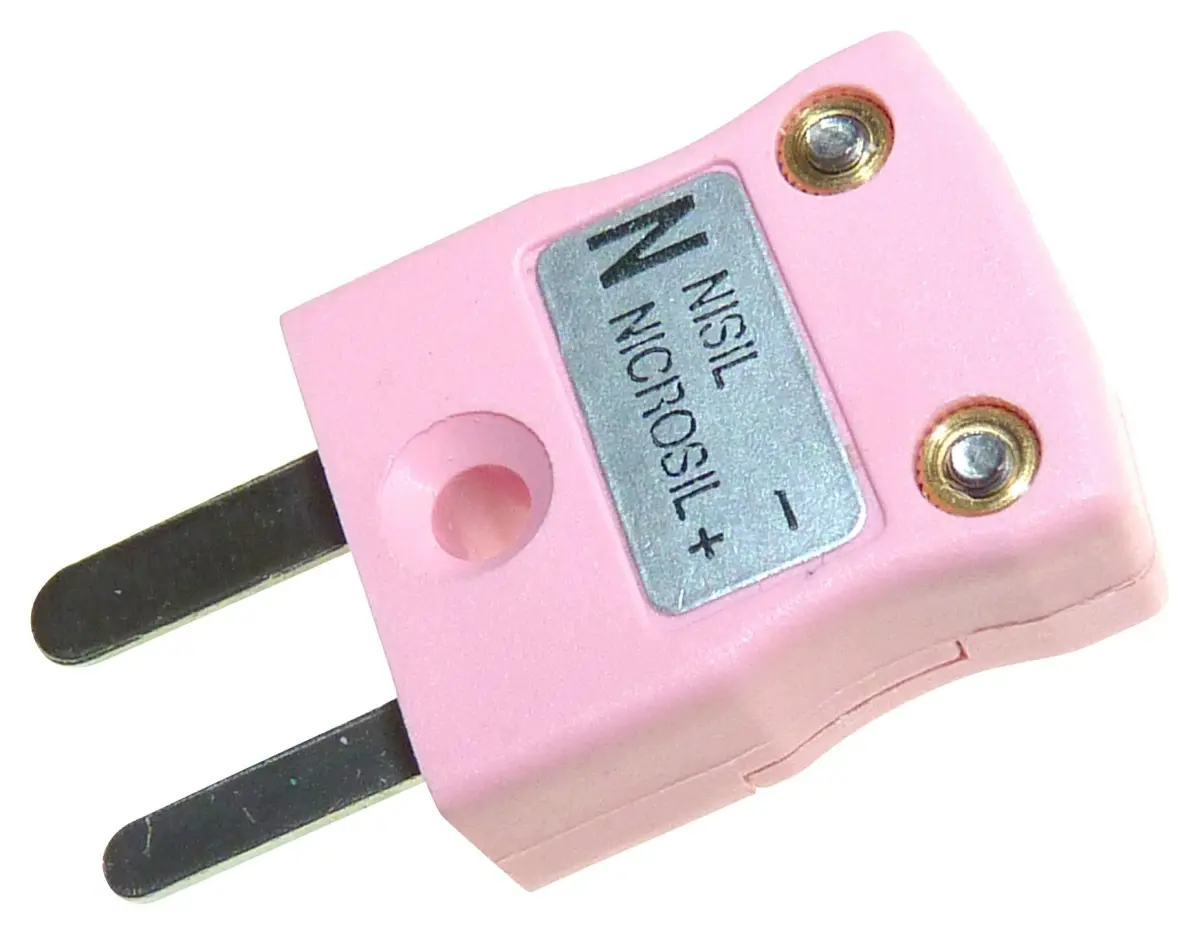

LABFACILITY Type N Thermocouple Miniature In-Line Plug Pink IEC

The LABFACILITY Type N Thermocouple Miniature In-Line Plug (model IM-N-M) is a reliable and precision-engineered connector designed for use with N-type thermocouples. Its distinctive pink colour coding ensures easy identification in complex setups, and it is ideal for general purpose instrumentation and sensing applications.

This miniature plug features flat pins and all contacts are fully polarised, guaranteeing correct and secure connections every time. It accepts thermocouple cable up to 4mm in diameter, and a cable clamp is available to provide strain relief and secure cable attachment.

Colour coded in accordance with IEC specifications, the connector offers a maximum continuous operating temperature of 220°C, making it suitable for demanding industrial environments. The robust construction and thoughtful design ensure long-lasting performance and reliable signal transmission.

Key Features

• Flat pin design for stable connections
• Polarised contacts to prevent incorrect wiring
• Accepts cable up to 4mm diameter
• Cable clamp available for secure cable fixing
• Colour coded to IEC standard
• 220°C maximum continuous operating temperature

Applications

• Instrumentation
• Temperature sensing
• General purpose thermocouple connections

Specifications

• Gender: Plug
• Thermocouple Type: N
• Connector Style: Miniature (Pink)
• Number of Pins: 2
• Calibration Standard: IEC
• Operating Temperature Max: 220°C
• Dimensions (HxWxD): 43mm x 33mm x 15mm
• Weight: 5g

This LABFACILITY connector is an essential accessory for accurate temperature measurement and control systems.
