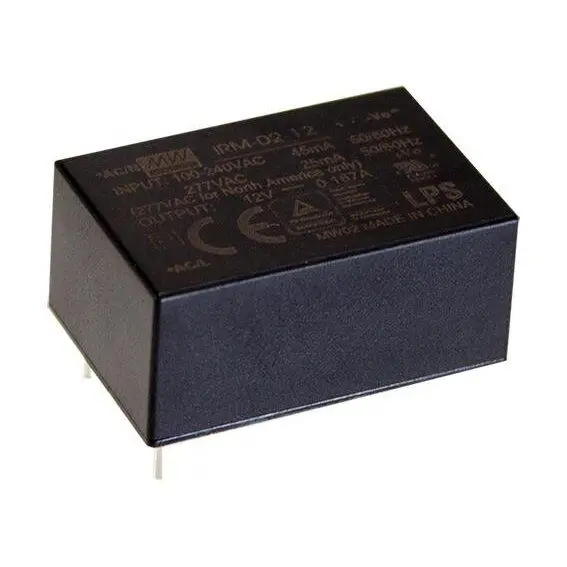

MEAN WELL 12V 2W PCB Mount AC to DC Power Supply

The MEAN WELL IRM-02 series is a 2W miniature AC to DC module type power supply, designed to deliver a fixed 12VDC output from a universal input voltage range of 85VAC to 305VAC. This encapsulated, single-output unit is engineered for reliability and efficiency in a compact, PCB-mountable form factor, making it an ideal choice for a wide range of IT equipment and industrial applications.

Key Features & Benefits

With a high efficiency rating of up to 70% and low no-load power consumption of less than 0.75W, this power supply helps to reduce energy waste and operational costs. The built-in EMI filtering components ensure compliance with EN55032 Class B standards without the need for additional components, simplifying your design and BOM. Safety is a priority, with comprehensive protections including short circuit, overload, and overvoltage protection, along with Isolation Class II. The unit relies on free air convection for cooling, ensuring silent and maintenance-free operation.

Specifications & Dimensions

This module provides a single fixed output of 12VDC at 167mA, with a maximum output power of 2W. It features an encapsulated design for enhanced durability and high reliability in demanding environments. The compact dimensions of 40mm (H) x 30mm (W) x 25mm (D) and a light weight of 25.47g make it easy to integrate into space-constrained applications.

Applications

This power supply is suitable for use in Information Technology Equipment (ITE), including industrial controls, telecommunications, and other electronic devices that require a stable and isolated DC power source. The MEAN WELL IRM-02 series is a trusted choice for engineers seeking a dependable, high-performance power solution.
