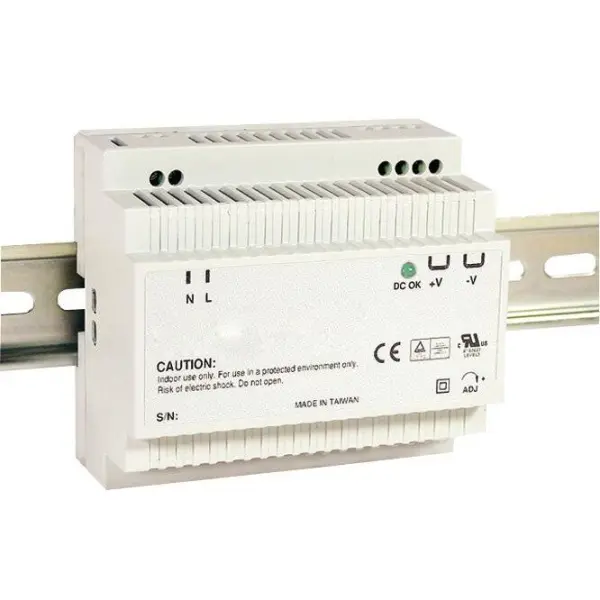

MEAN WELL 90W 12V 7.5A DIN Rail Power Supply

The MEAN WELL 90W 12V 7.5A DIN Rail Power Supply provides reliable and robust power conversion for a wide array of professional and industrial applications. Featuring a universal AC input range from 88V AC to 264V AC, this single-output unit offers flexibility and compatibility with various mains supplies worldwide. Its compact design facilitates easy installation on standard DIN rails (TS-35/7.5 or 15), making it an ideal component for control cabinets, machinery, and automation systems.

Built for durability, this power supply incorporates comprehensive protective measures to ensure safe and stable operation. These include short circuit, overload, over-voltage, and over-temperature protection mechanisms, which safeguard both the power supply and the connected equipment from potential damage. It operates silently via free air convection cooling, eliminating the need for noisy fans and reducing potential points of failure.

Key features include an LED indicator for clear visual confirmation of the power status and a low no-load power consumption of less than 1W, enhancing energy efficiency. The unit adheres to high-quality standards, having undergone a 100% full load burn-in test prior to leaving the factory, guaranteeing reliable performance from the outset.

Specifications

• Output Power: 90W maximum
• Output Voltage: 12V DC fixed
• Output Current: 7.5A
• Input Range: 88-264V AC (universal)
• Cooling Method: Free air convection (fanless)
• Protections: Short circuit, overload, over-voltage, over-temperature
• Indication: LED power-on indicator
• No-Load Consumption: < 1W
• Mounting: DIN rail TS-35/7.5 or 15
• Isolation Class: Class II
• Dimensions (H x W x D): 40mm x 30mm x 25mm
• Weight: 337 grams

With its robust construction and adherence to industrial standards, this MEAN WELL
