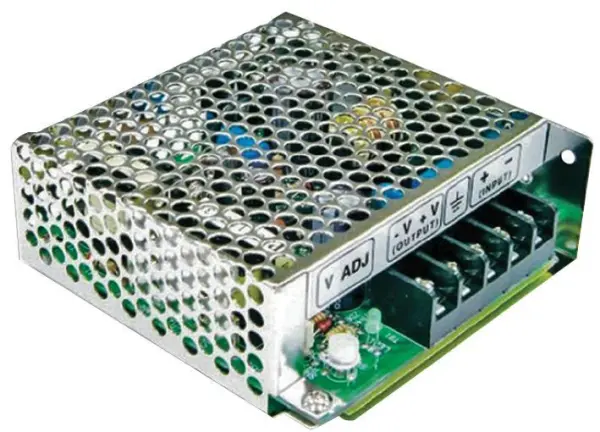

MEAN WELL SD-25 25W DC-DC Converter, 5V 5A Output

The MEAN WELL SD-25 Series DC-DC Converter is a robust, industrial-grade power module designed for reliable voltage conversion in demanding environments. It accepts a wide 2:1 input range of 18V to 36V DC and delivers a stable, fixed 5V DC output at up to 5A, providing a maximum output power of 25 watts. Its fully enclosed metal chassis offers excellent mechanical protection and aids in heat dissipation for consistent performance.

Engineered for high reliability, this converter incorporates comprehensive protection features including short circuit, overload, and over-voltage safeguards. It boasts a high 1500VAC isolation between input and output, enhancing safety in sensitive applications. The built-in EMI filter ensures low ripple and noise, making it suitable for use with sensitive digital equipment.

Key Features & Specifications

• Input Voltage: Wide range of 18V DC (minimum) to 36V DC (maximum), with a nominal 24V DC.
• Output: Single, fixed output of 5V DC at 5A (25W max).
• Protections: Integrated short circuit, overload, and over-voltage protection.
• Isolation: High 1500VAC isolation between input and output circuits.
• Noise Reduction: Built-in EMI filter for low ripple noise.
• Switching Frequency: Fixed at 83kHz.
• Construction: Industrial enclosed metal chassis mount design.
• Dimensions: Compact size of 40mm (H) x 30mm (W) x 25mm (D).
• Weight: 360 grams.
• Quality Assurance: 100% full load burn-in tested for guaranteed reliability.

This cost-effective and highly reliable power solution is perfect for integrating into industrial control systems, telecommunications equipment, and various ITE (Information Technology Equipment) applications where a stable, isolated DC power source is required.
