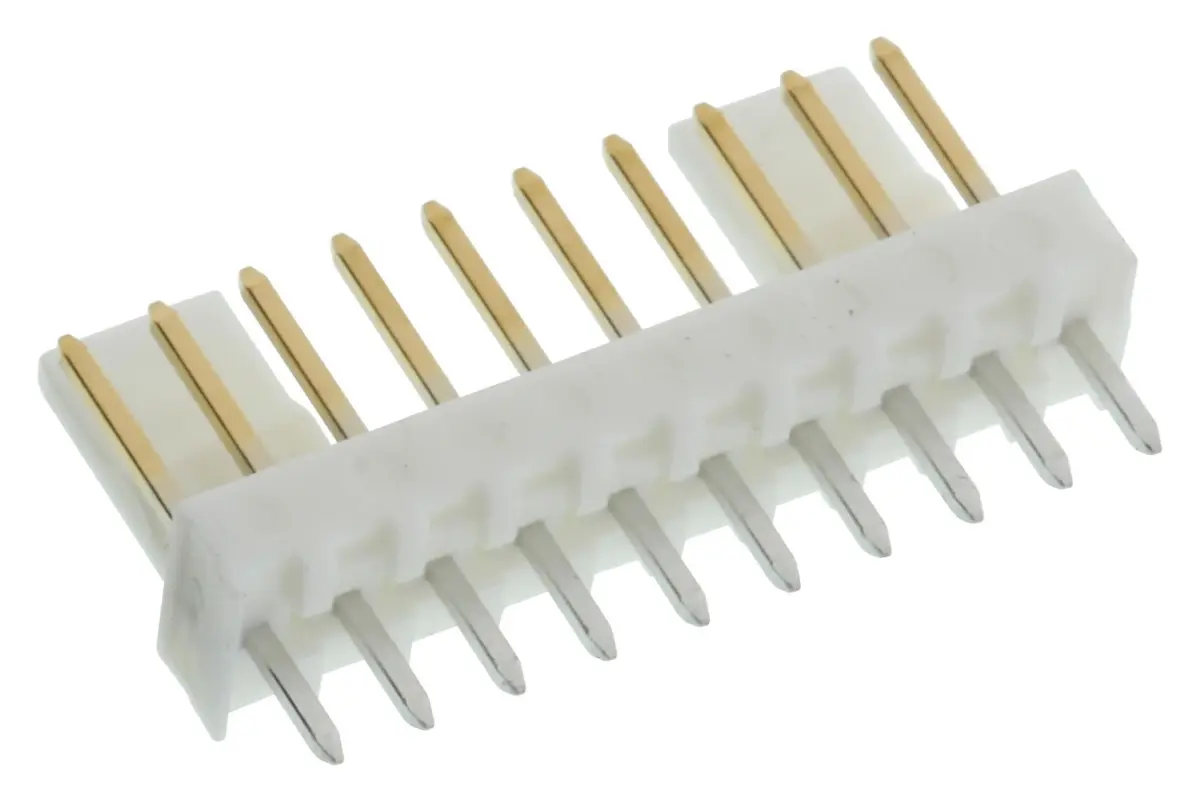

Molex/Brad 0.1in Vertical Square Pin Header, 10 Way

The Molex/Brad 0.1in Vertical Square Pin Header is a fundamental electronic component designed for creating reliable, flexible connections on circuit boards. This vertical header features square pins arranged with a standard 0.1-inch (2.54mm) pitch, providing a precise and industry-standard spacing that ensures compatibility with a wide range of sockets, connectors, and jumper shunts. The robust 10-way design offers ten individual connection points, making it a versatile building block for complex circuit routing.

Its vertical orientation is perfect for space-efficient designs, allowing for perpendicular connections that save valuable board real estate. Constructed from durable materials, this header ensures a secure mechanical fit and stable electrical contact, vital for signal integrity in both digital and analogue applications. The square pin profile enhances retention within mating connectors and through-holes, providing a more reliable connection than rounded alternatives.

This component is considered essential stock hardware, equally valuable for rapid prototyping where designs are being tested and iterated, and for final production runs where proven reliability is required. It enables designers to create modular systems, break out connections for testing, or link multiple boards together within an assembly. Its simple, effective design makes it a go-to solution for engineers and hobbyists across countless electronics projects.

Specifications

• Pitch: 0.1 inch (2.54mm) centre spacing
• Pin Type: Square profile for superior retention
• Orientation: Vertical
• Number of Ways: 10 pins
• Height: 43 mm
• Width: 33 mm
• Depth: 15 mm
• Weight: 1 gram

With its precise engineering and dependable construction, this Molex/Brad header streamlines the development and manufacturing process, providing a trusted connection solution.
