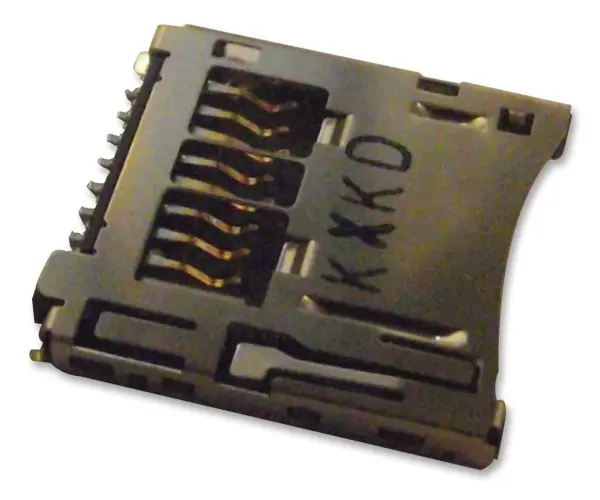

MOLEX / BRAD 1.1mm Pitch Reverse Mount SMT microSD Card Connector

The MOLEX / BRAD 1.1mm Pitch microSD Memory Card Connector is a premium surface-mount solution designed for modern, space-constrained electronic devices. Its innovative reverse-mount SMT (Surface Mount Technology) design is engineered to save valuable printed circuit board (PCB) space, allowing for more compact and streamlined product layouts. This is particularly advantageous in portable electronics such as smartphones, tablets, GPS units, and action cameras where internal real estate is at a premium.

Featuring a convenient push-push ejection mechanism, this connector ensures reliable and effortless insertion and removal of microSD memory cards. The user simply pushes the card in to latch it securely into place, and a subsequent push releases it, eliminating the need for complex mechanical levers and reducing the risk of damage to the card or connector. This mechanism enhances the overall user experience by making memory card handling intuitive and robust.

Constructed to high-quality standards, this connector provides a secure and stable electrical connection for data transfer and storage expansion. Its 1.1mm pitch refers to the distance between contact pins, a specification that supports the miniaturisation of electronic components without compromising on performance or reliability. The connector is built to withstand repeated insertion and removal cycles, ensuring long-term durability in demanding applications.

Specifications

• Pitch: 1.1mm
• Mounting Type: Reverse-mount Surface Mount Technology (SMT)
• Ejection Type: Push-Push mechanism
• Card Compatibility: microSD Memory Card
• Height: 43 mm
• Width: 33 mm
• Depth: 15 mm
• Weight: 1.361 grams

This component is an essential choice for design engineers seeking a reliable, space-saving, and user-friendly interface for removable flash memory in their electronic designs.
