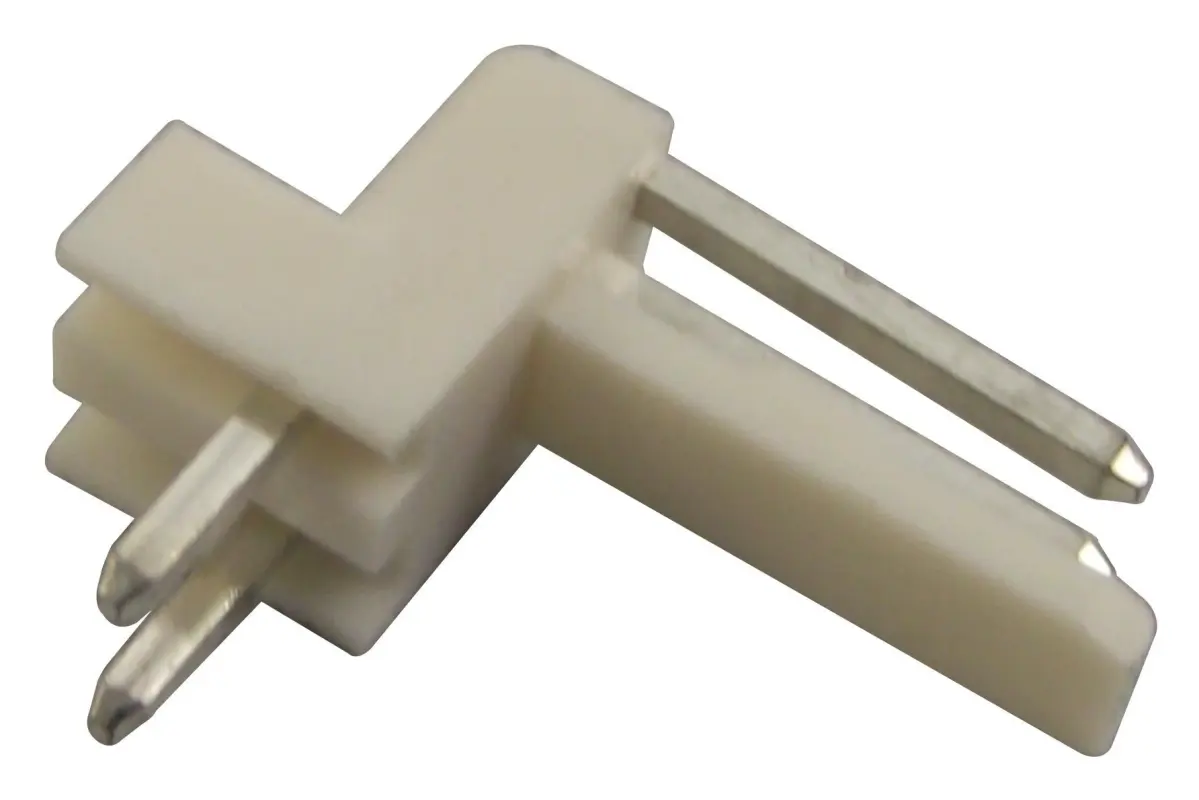

MOLEX / BRAD 2.5mm 2-Way Right Angle Pin Header

The MOLEX / BRAD 2.5mm 2-Way Right Angle Pin Header is part of the Mini-Latch / KK 5046 series, designed for reliable wire-to-board connections. This partially shrouded PCB header features a friction ramp mechanism to ensure secure mating and prevent accidental disconnection, providing stability in demanding electronic applications.

Engineered for through-hole right-angle mounting, this connector saves valuable space on your PCB layout while maintaining a strong physical and electrical connection. It is specifically designed for use with 51191 series 2.50mm pitch housings, ensuring compatibility and ease of integration into existing setups.

Key Specifications

• Pitch Spacing: 2.5mm
• Number of Contacts: 2
• Number of Rows: 1
• Contact Material: Brass
• Contact Plating: Tin
• Termination Type: Through Hole Right Angle
• Connector Shroud: Partially shrouded

With compact dimensions of 43mm in height, 33mm in width, and 15mm in depth, and weighing just 1 gram, this PCB header is ideal for dense circuit designs where space and weight are critical considerations.
