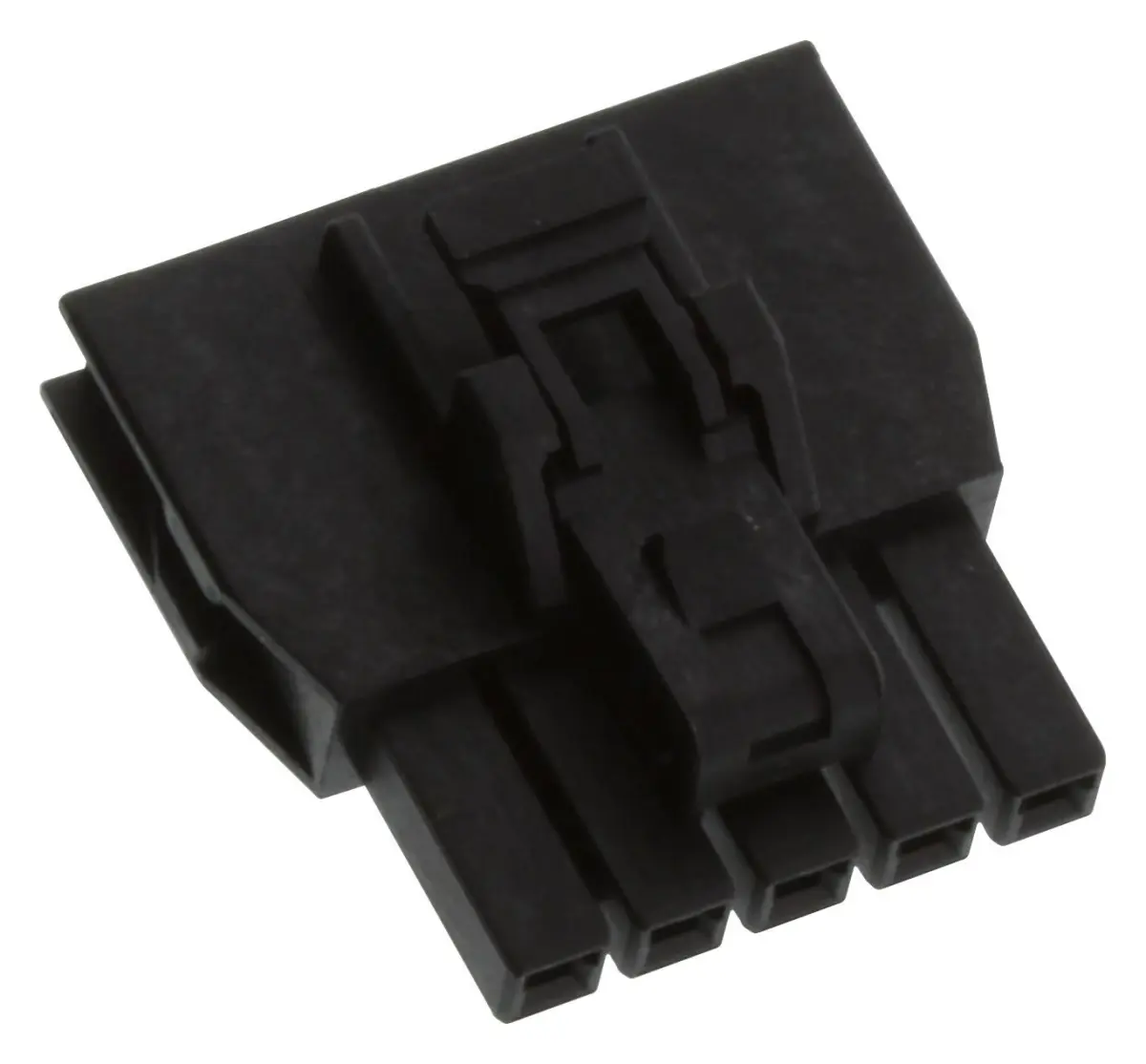

MOLEX / BRAD 5 Way Nano-Fit Connector Housing Socket, 2.5mm Pitch

The MOLEX / BRAD 5 Way Nano-Fit Connector Housing Socket is a compact five-circuit power connector designed specifically for wire-to-board applications. Featuring a 2.5mm pitch, this socket housing provides a reliable and space-saving solution for your electrical connectivity needs, ensuring a secure and stable link between wires and the printed circuit board.

Part of the renowned Nano-Fit series, this connector housing is engineered to deliver consistent power connectivity in dense electronic assemblies where space is at a premium. The 5-way configuration ensures organised and efficient wire-to-board integration, reducing clutter and improving overall system stability within your electronic devices.

Specifications

• Connector Type: Socket Housing
• Circuits: 5-way
• Pitch: 2.5mm
• Series: Nano-Fit
• Connection Type: Wire-to-board

With precise dimensions of 33mm in height, 22mm in width, and a slim 2mm depth, this component easily fits into tight spatial constraints. Weighing just 0.643 grams, it adds minimal weight to your PCB assembly, making it an excellent choice for lightweight and compact electronic designs.
