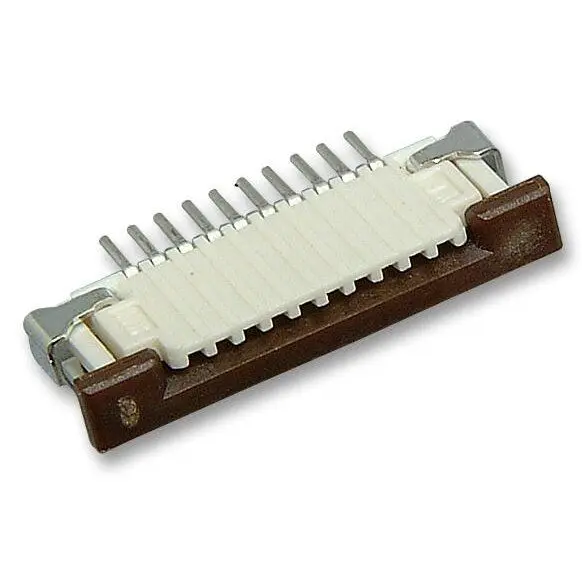

MOLEX / BRAD FFC/FPC ZIF Socket, 1mm Pitch, 20 Way

The MOLEX / BRAD FFC/FPC ZIF Socket is designed to provide a highly reliable connection for 20-way flat cables. Featuring a 1mm pitch, this socket is an essential component for electronic applications requiring secure and compact connectivity.

A key feature of this socket is its Zero Insertion Force (ZIF) actuator. This mechanism clamps the flex cable firmly without inducing any contact stress, ensuring the integrity of both the cable and the connection over repeated uses. By eliminating insertion force, it protects delicate flat flex cables from damage during installation and removal.

Key Features and Specifications

• Type: FFC/FPC ZIF Socket
• Pitch: 1mm
• Number of Ways: 20-way
• Actuator Type: Zero Insertion Force (ZIF)
• Contact Stress: Eliminated during clamping for reliable performance

With precise dimensions of 43 mm in height, 33 mm in width, and 15 mm in depth, this compact socket is suitable for space-constrained installations. Weighing just 2 grams, it adds minimal bulk to your PCB or device assembly, making it an ideal choice for efficient and dependable flat cable integration.
