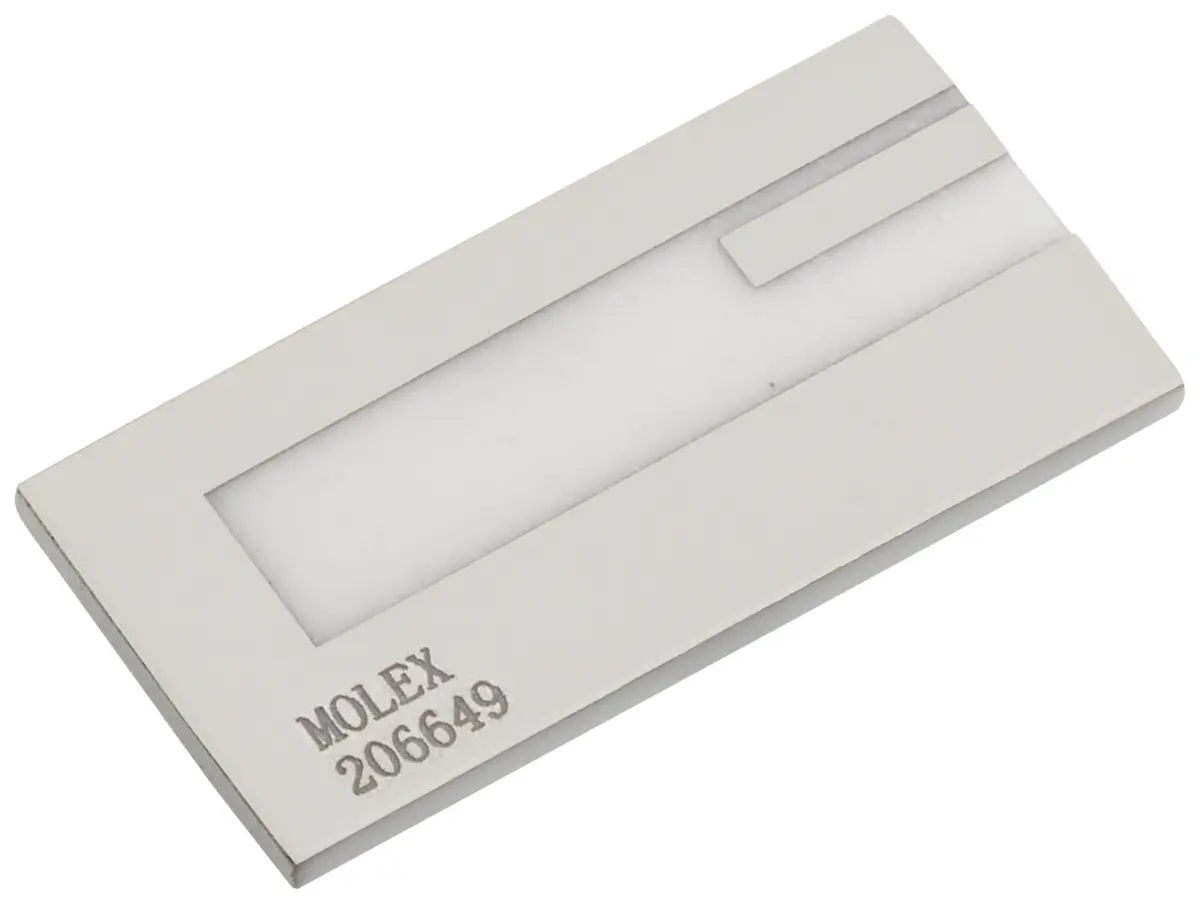

Molex Cellular 3G SMD Antenna 698-960MHz 1.1dBi

The Molex Cellular / 3G SMD Antenna is a compact surface-mount device designed for reliable omnidirectional coverage across the 698MHz to 960MHz frequency band. With linear polarisation and a 50 ohm impedance, this antenna delivers consistent performance for cellular and 3G applications. It achieves a peak gain of 1.1dBi at 824MHz, with a maximum input power of 2W, making it suitable for a wide range of wireless modules and embedded devices.

The antenna’s SMD (surface-mount) form factor simplifies assembly, enabling efficient integration onto PCBs without the need for bulky external components. Its slim profile measures just 33mm x 22mm x 2mm, allowing for space-saving designs in compact electronic enclosures. Linear polarisation ensures stable signal orientation, while the 50-ohm impedance ensures seamless compatibility with standard RF circuitry.

This antenna supports frequencies from 698MHz up to 960MHz, covering key cellular bands including LTE and 3G. Whether used in IoT gateways, telematics systems, or remote monitoring equipment, this Molex antenna offers a dependable solution for maintaining robust wireless connectivity.

Key Features:

• Omnidirectional radiation pattern
• Linear polarisation
• Surface-mount design
• Frequency range: 698MHz to 960MHz
• Peak gain: 1.1dBi at 824MHz
• Impedance: 50 ohms
• Maximum input power: 2W
• Compact dimensions: 33mm x 22mm x 2mm

Typical Applications:

• IoT devices and sensors
• Telematics and tracking systems
• Remote monitoring equipment
• Wireless modules requiring cellular connectivity
