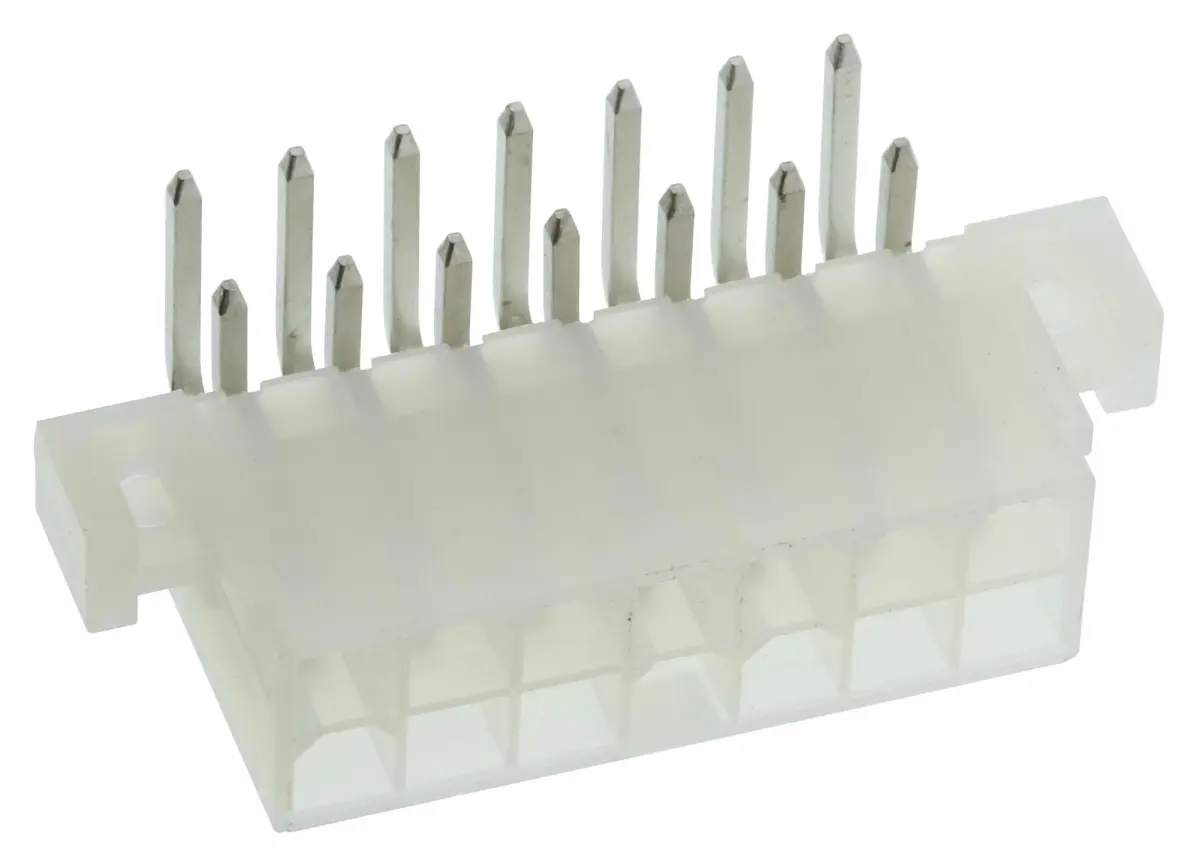

Molex Mini-Fit Jr. 5569 PCB Header, Right Angle, 14 Way

The Molex Mini-Ft Jr. 5569 PCB Header is a right-angle, 14-way connector engineered for reliable power and wire-to-board applications. With a compact 4.2mm pitch and two rows of contacts, this shrouded header ensures secure and polarized mating, reducing the risk of misalignment during assembly.

Featuring positive locking housings and scoop-proof construction, this header provides a robust connection that withstands vibration and prevents accidental disengagement. It accepts standard Mini-Fit and Mini-Fit Plus crimp terminals, offering versatile integration with existing systems.

The through-hole right-angle termination type allows for efficient PCB mounting, while the brass alloy contacts with tin plating ensure excellent conductivity and corrosion resistance. This header is part of the Molex Mini-Ft Jr. series, known for its durability and performance in demanding environments.

With a height of 43mm, width of 33mm, and depth of 15mm, this header is suitable for space-constrained applications. It is ideal for power supply connections, industrial equipment, and automotive electronics, delivering dependable performance in a wide range of settings.

Specifications

• Connector System: Power, Wire-to-Board
• Pitch Spacing: 4.2mm
• No. of Rows: 2
• No. of Contacts: 14
• Contact Termination Type: Through Hole, Right Angle
• Connector Shroud: Shrouded
• Contact Material: Brass Alloy
• Contact Plating: Tin Plated
• Connector Type: PCB Header
• Height: 43mm
• Width: 33mm
• Depth: 15mm
• Weight: 0.505g

This Molex header delivers a secure, high-quality connection for your power distribution needs, ensuring long-term reliability and ease of assembly.
