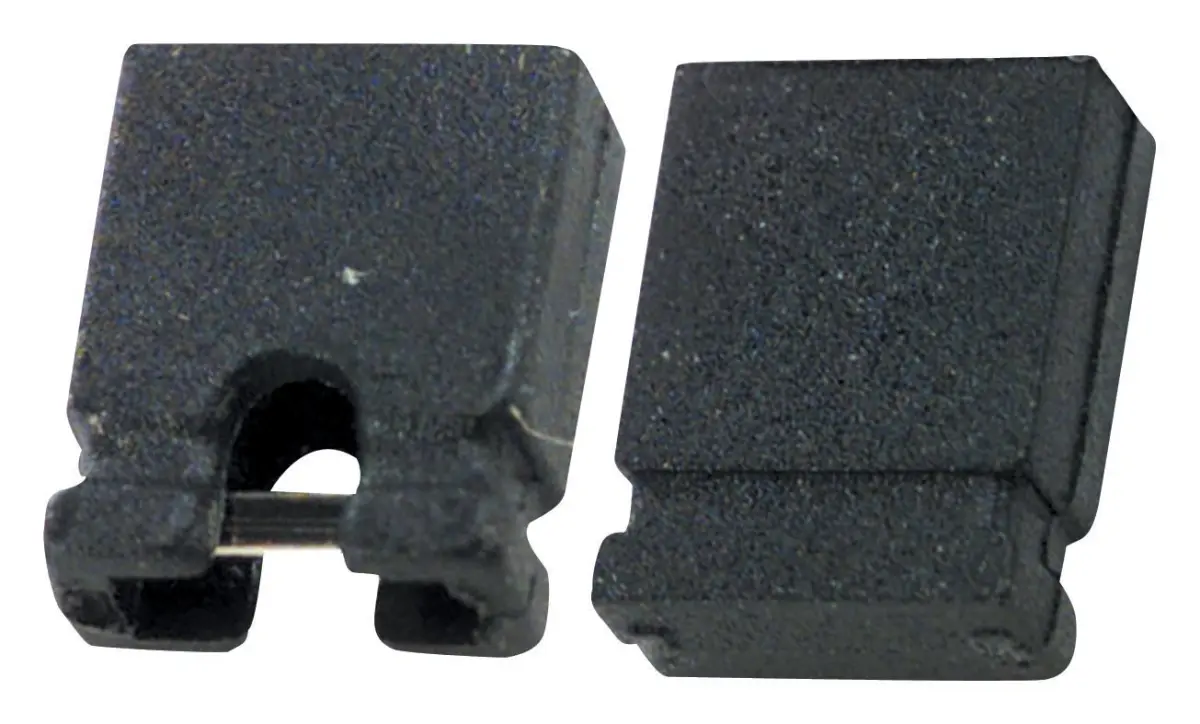

Multicomp Pro 2.54mm Shorting Link, Black, Pack of 25

The Multicomp Pro 2.54mm Shorting Link is a 2-way open-type mini jumper designed to guarantee high reliability in various electronic applications. Featuring a double tuning fork type contact, this jumper ensures a secure and stable connection on a 2.54mm pitch. It comes in a convenient pack of 25, providing ample components for your project needs.

Constructed with quality materials, the insulator is made from 30% glass fibre reinforced PBT, offering excellent durability and heat resistance. The terminals are crafted from phosphor bronze with a gold-plated finish, which enhances conductivity and prevents corrosion over time. With a maximum current rating of 3A and a maximum contact resistance of 20mΩ, this jumper is built for consistent performance. It also boasts a minimum insulation resistance of 100MΩ.

Ideal for use with address or code strip line plugs, this black shorting link is perfectly suited for industrial environments, computer hardware configurations, and hobby education projects. Its compact design, with dimensions of 33 mm in height, 22 mm in width, and 2 mm in depth, allows for versatile placement on densely packed circuit boards.

Key Features

• 2-way open-type mini jumper
• Double tuning fork type contact for high reliability
• 2.54mm pitch spacing
• Pack of 25 shorting links
• Gold-plated phosphor bronze terminals

Whether you are building a prototype or maintaining existing hardware, the Multicomp Pro shorting link provides a dependable solution for your circuit configuration requirements.
