Multicomp Pro 22.5mm Miniature PCB Speaker 150mW 8ohm
Multicomp Pro 22.5mm Miniature PCB Speaker with Mylar cone. 150mW max power, 8ohm impedance, 73dB SPL. Ideal for medical and consumer electronics.

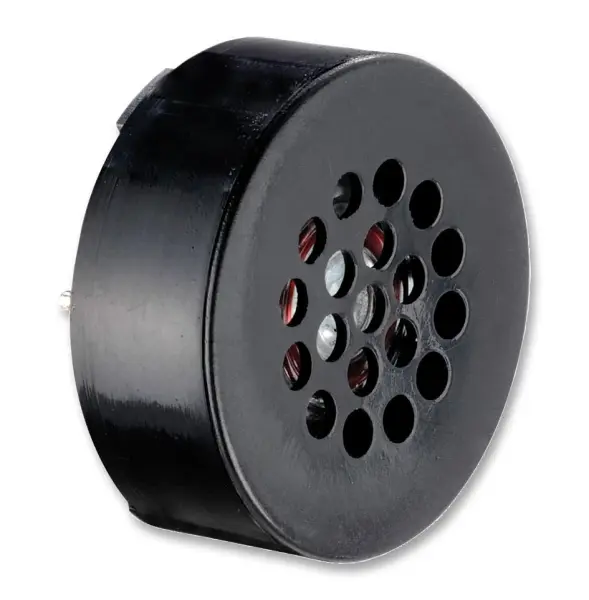

The Multicomp Pro 22.5mm Miniature PCB Speaker is a low-profile, PCB-mount audio component designed for reliable sound generation in compact electronic devices. Featuring a durable Mylar cone, this round speaker delivers a sound pressure level of 73dB and operates efficiently with a nominal power rating of 80mW and a maximum power rating of 150mW.
Suitable for wave soldering, the speaker operates within a temperature range of -20°C to +85°C, ensuring consistent performance across various environments. With an impedance of 8ohm and a resonant frequency of 1.5kHz, it covers a frequency response from 700Hz to 4kHz, making it versatile for a wide array of audio signalling applications.
Key Features
- Low-profile PCB-mount design
- Mylar cone construction
- Wave solderable
- Through-hole mounting
Specifications
- Driver Type: Miniature
- Impedance: 8ohm
- Power Rating (Nominal): 80mW
- Power Rating (Maximum): 150mW
- Sound Pressure Level (SPL): 73dB
- Resonant Frequency: 1.5kHz
- Frequency Range: 700Hz to 4kHz
- Speaker Shape: Round
- Product Dimensions: 22.5mm x 8.5mm
- Operating Temperature: -20°C to +85°C
Whether integrating into consumer electronics or medical devices, this miniature speaker offers a dependable audio output solution.
