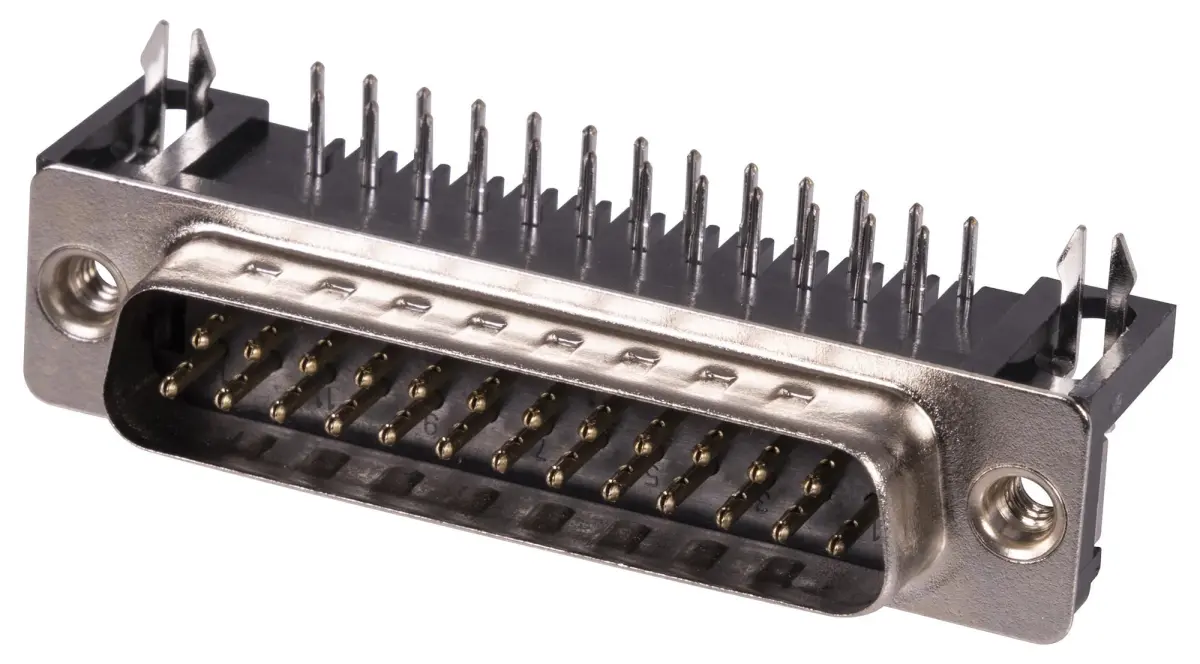

Multicomp Pro 25-Pin D-Sub Right-Angle PCB Plug with Boardlock

The Multicomp Pro 25-Pin D-Sub Right-Angle PCB Plug with Boardlock is designed for secure and reliable board-mounted connections. Featuring a right-angle configuration, this plug mounts directly to the board edge, saving valuable space within your electronic assemblies.

Equipped with integrated boardlock locking posts, the connector ensures a rigid and stable connection that resists vibration and accidental disconnection. This makes it an excellent choice for applications where a robust and dependable interface is required.

Key Features and Benefits

• 25-Pin Configuration: Suitable for standard D-sub connections
• Right-Angle Design: Facilitates edge mounting on printed circuit boards
• Integrated Boardlock: Features locking posts for a rigid and reliable connection
• Secure Mounting: Attaches directly to the board edge for stability

This D-sub plug is ideal for serial, parallel, and industrial interface designs, providing versatile connectivity for a wide range of electronic equipment. The compact dimensions and lightweight construction further enhance its suitability for densely populated circuit boards.

Specifications

• Pins: 25
• Connector Type: D-Sub PCB Plug
• Orientation: Right Angle
• Mounting Type: Edge mount with boardlock
• Height: 33 mm
• Width: 22 mm
• Depth: 2 mm
• Weight: 12 grams
