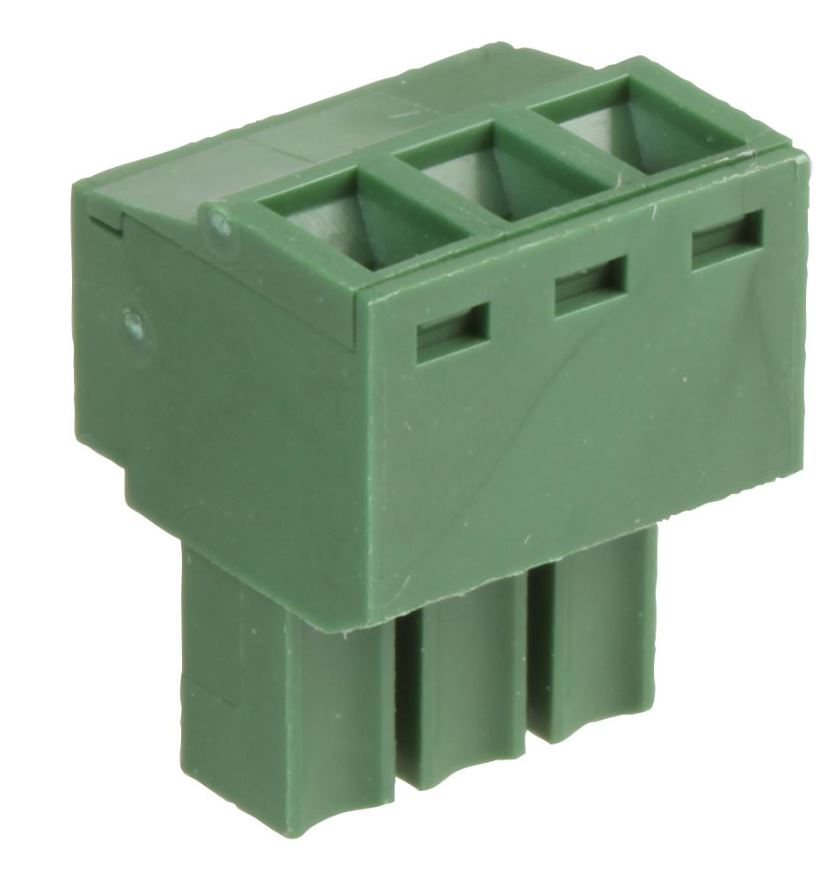

MULTICOMP PRO 3-Way 3.81mm Pluggable Terminal Block, 10A
Reliable 3.81mm pluggable terminal block, 10A rating, for industrial and PCB applications. Tin-plated phosphor bronze terminals.
The MULTICOMP PRO 3.81mm Pluggable Terminal Block is designed for secure and reliable electrical connections in various industrial environments. Featuring a tin-plated phosphor bronze terminal, it ensures excellent conductivity and corrosion resistance. The green polyamide 66 insulating body provides robust protection against high temperatures and electrical interference.
This terminal block supports wire gauges from 26AWG to 16AWG, making it versatile for a range of wiring needs. Its screw wire connection method guarantees a stable and secure hold, while the 10A rated current and 300V rated voltage ensure safe operation in demanding applications.
Key Features
- Material: Tin-plated phosphor bronze terminal, polyamide 66 body
- Insulation Resistance: >2000MΩ
- Temperature Range: -40°C to +105°C
- Pitch Spacing: 3.81mm
- Wire Gauge: 26AWG to 16AWG
Applications
- Industrial control systems
- Power distribution
- PCB connections
- Industrial control systems
- Power distribution
- PCB connections
- Material: Tin-plated phosphor bronze terminal, polyamide 66 body
- Pitch Spacing: 3.81mm
- No. of Positions: 3 ways
- Wire Size (AWG): 26AWG to 16AWG
- Wire Connection Method: Screw
- Rated Current: 10A
- Rated Voltage: 300V
- Insulation Resistance: >2000MΩ
- Operating Temperature Range: -40°C to +105°C
- Weight: 900g
Always follow local regulations and product guidance.
