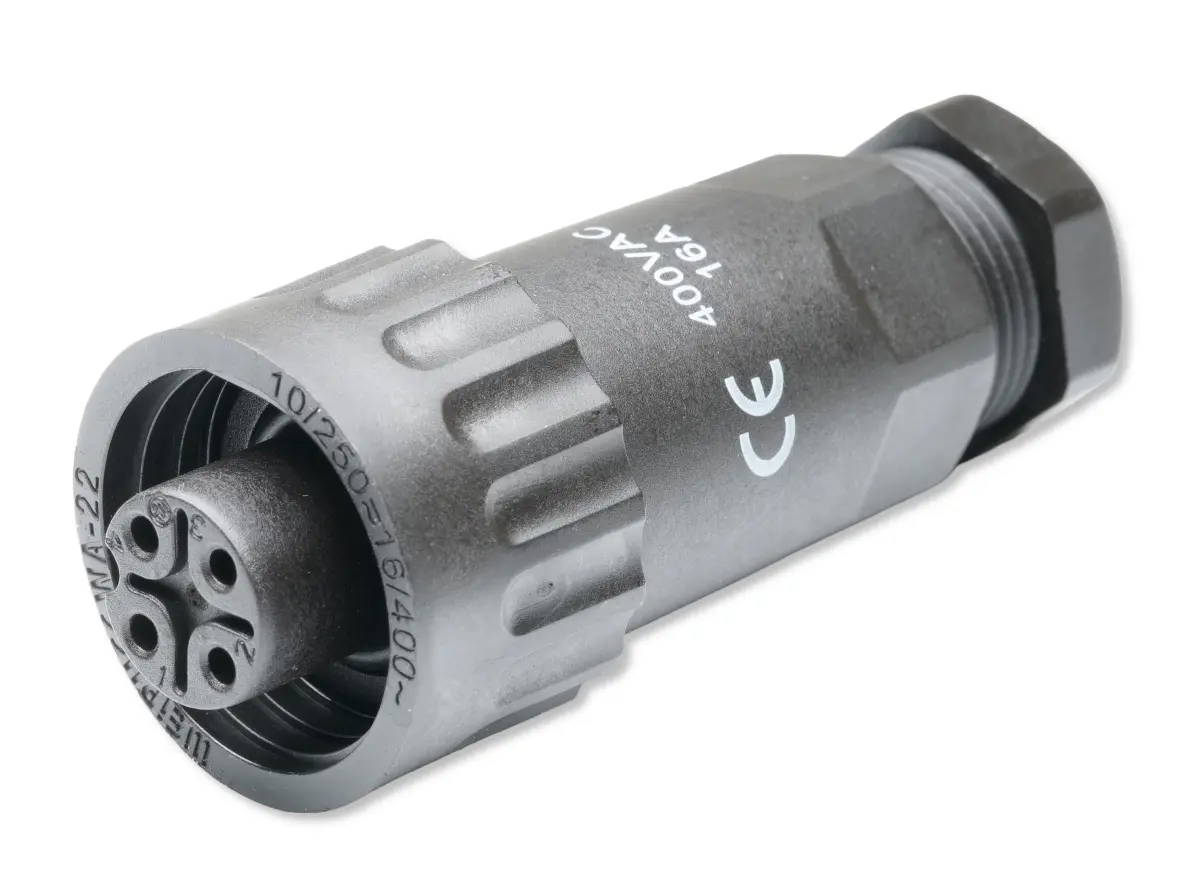

Multicomp Pro 4 Pole IP67 Circular Inline Connector Socket Screw Terminals

Multicomp Pro 4 Pole IP67 Circular Inline Connector Socket is a screw terminal connector built for dependable performance in demanding outdoor and industrial environments. Rated to IP67, it provides protection against dust ingress and can withstand immersion in water up to 1 metre for 30 minutes.

Overview

This connector forms part of the Multicomp Pro WA22 series and features a 3+PE (4 pole) configuration with screw terminals. It accommodates cables with an outer diameter of 6.5 mm, supporting a secure and stable connection. The body is manufactured from Nylon 6.6 (Polyamide 6.6), and the brass contacts are plated in gold. The threaded coupling provides a secure, vibration-resistant mate with corresponding panel or cable mount connectors.

Key Features

• IP67 rating with protection against dust ingress
• Immersion resistance up to 1 metre for 30 minutes
• 3+PE (4 pole) configuration with screw terminals
• Suitable for cables with an outer diameter of 6.5 mm
• Nylon 6.6 (Polyamide 6.6) body with chemical resistance
• Brass contacts with gold plating
• Threaded coupling for vibration-resistant mating
• Current rating of 16A for the 3+PE version

Versatility

The cable mount side of the WA22 series is available with either internal or external threading. This allows mating with a range of corresponding connectors in the series, including 2-hole flanged panel mounts, short back shell cable mounts, 90-degree cable mounts, and other in-line cable mount variants.

Applications

This connector is suited to environments where environmental sealing and electrical reliability are important. It is commonly used in agricultural machinery, factory and industrial automation systems, process control equipment, commercial electrical installations, and power management setups.

Dimensions

Width: 2.3, Depth: 0.49, Height: 3.39. The product weight is 30 gm.
