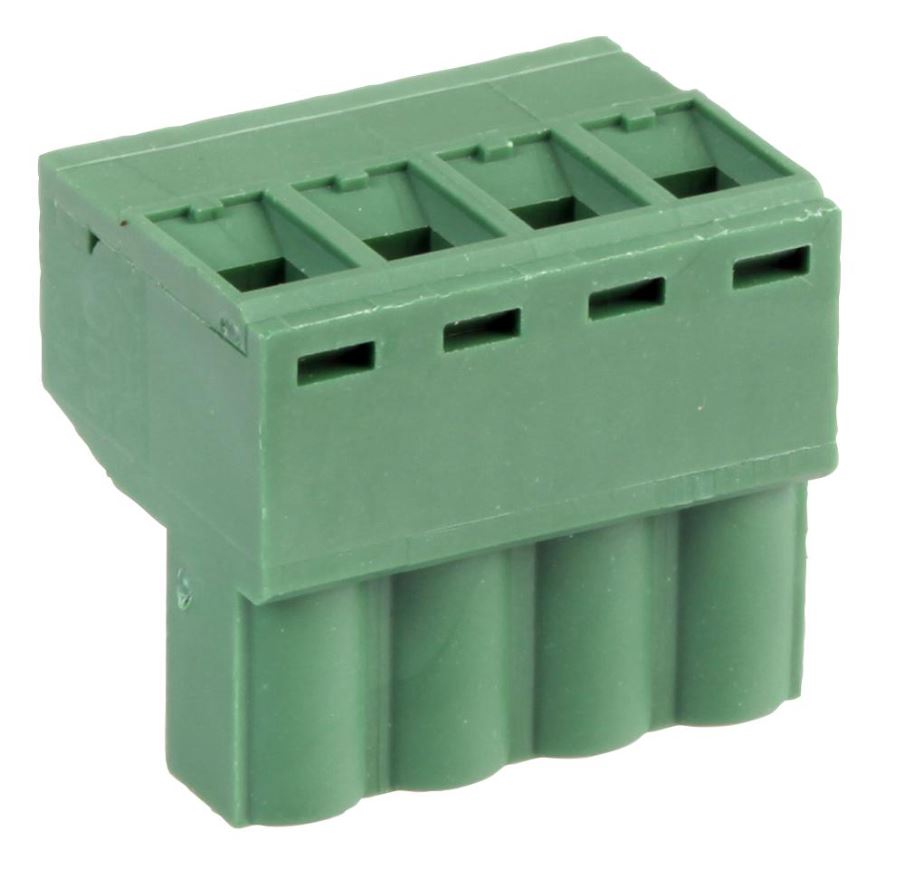

MULTICOMP PRO Pluggable Terminal Block, 5mm, 4 Way, 16A, 26-12AWG
Durable MULTICOMP PRO 5mm pluggable terminal block, 4 way, 16A, suitable for industrial applications.
The MULTICOMP PRO 5mm Pluggable Terminal Block is a robust and reliable solution for electrical connections in industrial applications. With a green polyamide 66 insulating body and tin-plated phosphor bronze contacts, this terminal block ensures durability and excellent conductivity. The zinc + Cr³ screw enhances corrosion resistance, making it suitable for demanding environments.
Key Features
- High Insulation Resistance: 2000VAC minimum insulation withstand voltage and >2000MΩ at 500V insulation resistance.
- Screw Torque: Provides secure wire connections with a screw torque of 7 lb-inch.
- Wide Temperature Range: Operates effectively between -40°C to 105°C, ensuring performance in varying conditions.
Specifications
- Pitch Spacing: 5mm
- No. of Positions: 4 Ways
- Wire Size Range: 26AWG to 12AWG
- Wire Connection Method: Screw
- Rated Current: 16A
- Rated Voltage: 300V
Applications
This terminal block is ideal for industrial environments requiring secure and high-performance electrical connections. However, please note that market demand may affect lead times and delivery dates.
With its high-quality materials and engineering, the MULTICOMP PRO Pluggable Terminal Block offers a dependable solution for your wiring needs.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Industrial electrical connections
- High-performance wiring applications
- Pitch Spacing: 5mm
- No. of Positions: 4 Ways
- Wire Size Range: 26AWG to 12AWG
- Wire Connection Method: Screw
- Rated Current: 16A
- Rated Voltage: 300V
- Minimum Insulation Withstand Voltage: 2000VAC
- Insulation Resistance: >2000MΩ at 500V
- Screw Torque: 7 lb-inch
- Operating Temperature Range: -40°C to 105°C
- Weight: 10g
Always follow local regulations and product guidance.
