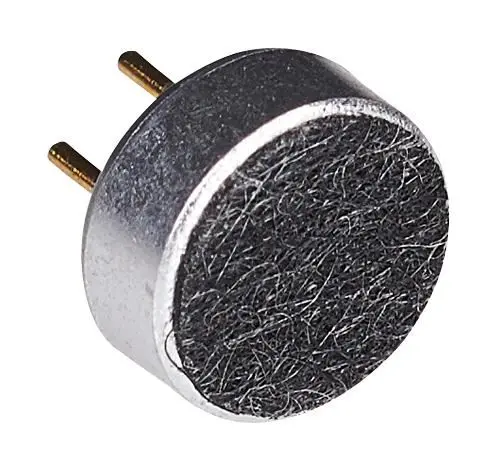

Multicomp Pro ABM-714-RC Electret Condenser Microphone Omnidirectional

The Multicomp Pro ABM-714-RC is an omnidirectional electret condenser microphone designed for a wide range of professional and consumer applications. This compact microphone features a pin terminal connection and a robust aluminium construction, ensuring reliable performance and durability. With a frequency response from 50 Hz to 16000 Hz, it captures audio with clarity across a broad spectrum, making it ideal for various electronic devices and systems.

Key Features

• Omnidirectional Polar Pattern: Picks up sound from all directions, providing consistent audio capture for a variety of settings.
• Aluminium Construction: Ensures durability and protection against environmental factors for long-lasting use.
• Wide Operating Temperature Range: Functions effectively in temperatures from -20°C to +70°C, ensuring reliable performance in diverse conditions.
• Engineered for Versatility: Suitable for a range of applications including medical electronics, consumer electronics, and more.
• High Signal-to-Noise Ratio: With a 60dB SNR, the microphone delivers a clear signal, minimising background noise for better audio quality.
• Radial Leaded Package: The 2-pin radial leaded package ensures easy integration into your circuit designs.

This microphone also features a sensitivity rating of -42dB and an impedance of 2.2kΩ. Its compact dimensions and lightweight design make it an excellent choice for space-constrained installations, while its technical specifications ensure reliable operation in sensing and instrumentation tasks.

Specifications

• Transducer Function: Microphone
• Microphone Type: Electret Condenser (ECM)
• Directivity: Omnidirectional
• Frequency Response Min: 50 Hz
• Frequency Response Max: 16000 Hz
• Signal to Noise Ratio (SNR): 60 dB
• Supply Voltage Max: 10 V
