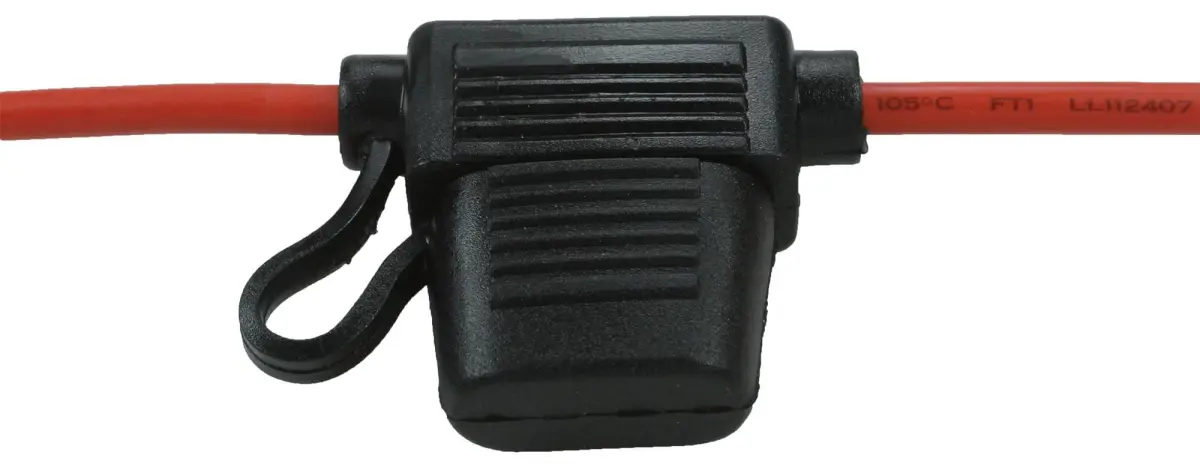

Multicomp Pro ATO In-Line Fuseholder 30A

The Multicomp Pro ATO In-Line Fuseholder is a robust automotive-grade component designed for safe and reliable circuit protection. Its durable PVC body houses high-quality tin/nickel-plated brass contacts, ensuring excellent conductivity and corrosion resistance.

Rated for a maximum current of 30A, this sealed fuseholder is a vital safety component in 12V and 24V systems. It offers exceptional electrical performance, including a minimum insulation resistance of 100 MΩ at 500 VDC and a low contact resistance of just 5 mΩ at 1 A.

For installation, the unit comes with a standard 10-inch (approximately 25 cm) length of 12 AWG wire, providing a secure and ready-to-use connection point for in-line wiring. The compact dimensions allow for discreet installation in tight spaces within vehicle engine bays, dashboards, or other electrical enclosures.

Key Features & Specifications

• Fuse Type: Designed for standard ATO/ATC blade fuses.
• Current Rating: 30A maximum.
• Construction: PVC body with tin/nickel-plated brass contacts.
• Electrical Safety: Minimum dielectric strength of 1000 VAC for 60 seconds.
• Pre-fitted Leads: Supplied with 12 AWG wire leads, 10 inches in length.
• Compact Design: Ideal for space-constrained installations.
• Sealed Design: Protects the connection from moisture and contaminants.

This single-fuse holder is a fundamental part of the MP Auto Blade Fuseholders range, providing a straightforward and effective method for adding fuse protection to any circuit.
