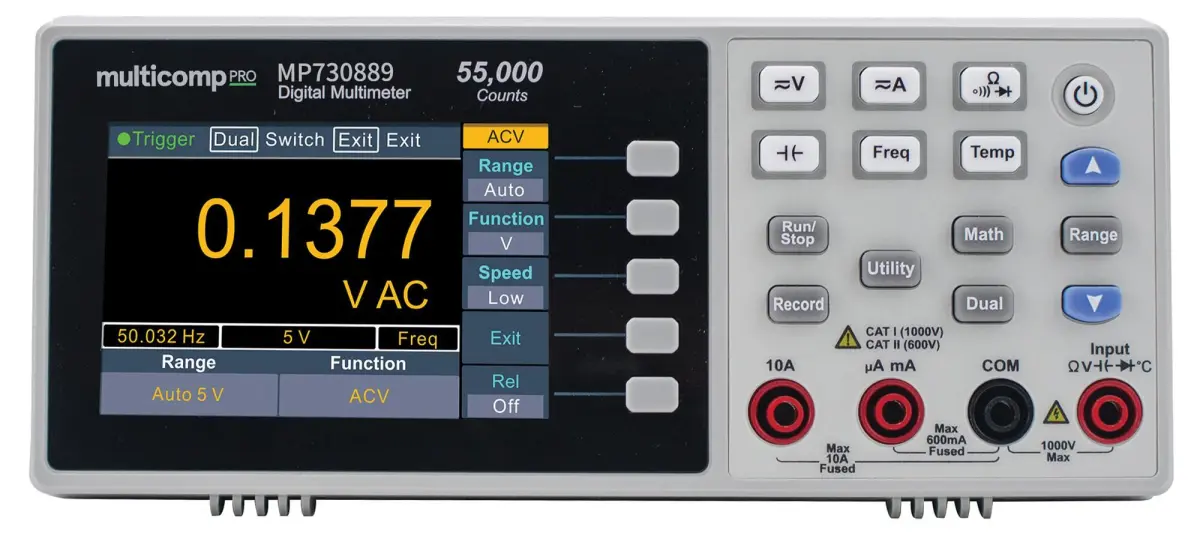

Bench Top Digital Multimeter, 4.5 Digit, 10A, 750V AC

The Multicomp Pro Bench Top Digital Multimeter is a high-performance, 4.5-digit resolution instrument designed for reliable and precise measurements in laboratory, workshop, and industrial environments. Its 3.5-inch high-resolution LCD provides a clear display of up to 55,000 counts, ensuring accurate readings are easy to view.

Comprehensive Measurement Functions

This versatile multimeter offers a wide array of functions to suit diverse testing needs:

• DC and AC Voltage measurement
• DC and AC Current measurement
• Resistance and Capacitance measurement
• Continuity testing with audible indicator
• Diode test functionality
• Temperature measurement
• AC Frequency (Hz) measurement
• True RMS AC measurement for accurate readings of non-sinusoidal waveforms

Advanced Features for Professional Use

Engineered for efficiency, the multimeter supports data recording with manual or automatic logging of measured values into internal memory, displayed in a convenient table format. With a fast reading rate of up to 65 readings per second, it captures dynamic changes effectively. Remote control and automation are enabled via a USB (or RS232) port using standard SCPI commands, making it compatible with PC software and mainstream multimeter programming.

Built for Continuous Operation

Powered by an AC mains supply for maintenance-free, continuous use, it operates reliably within a full temperature range of 0°C to 50°C. Its robust construction and clear display make it a dependable tool for engineers and technicians.

Specifications

• Display: 3.5-inch high-resolution LCD, 55,000 count
• DC Voltage Accuracy: Up to 0.05%
• Maximum AC Voltage: 750V
• Maximum DC Voltage: 1kV
• Maximum AC/DC Current: 10A
• Maximum Resistance: 50MΩ
• *Bandwidth (AC True RMS):
