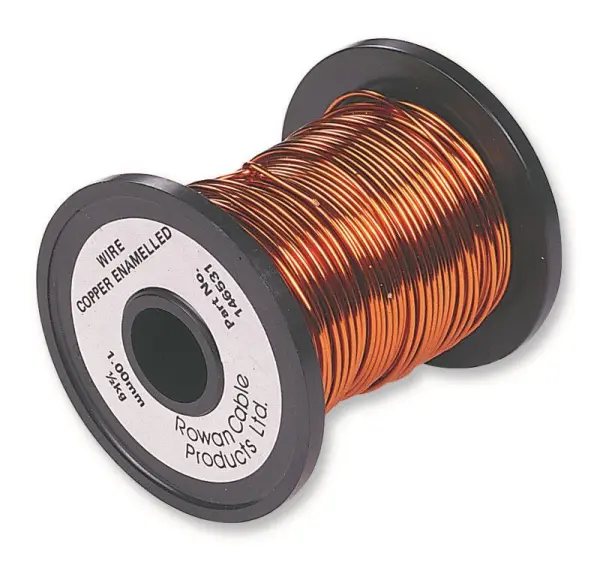

Multicomp Pro Enamelled Copper Wire 1mm 19swg

This Multicomp Pro Enamelled Copper Wire is a polyurethane-coated, self-fluxing wire designed specifically for creating coils in prototypes. The self-fluxing property allows the polyurethane coating to melt back during the soldering process, eliminating the need for prior stripping and ensuring a highly efficient workflow for electronics and prototype development.

The wire conforms to BS4520 Grade 2 (BS6811 Section 1, Pt.3) standards, guaranteeing reliable performance and consistent quality. It features a transparent PU jacket and a conductor area cross-sectional area (CSA) of 0.66mm². With a maximum continuous temperature rating of +120°C, this copper wire is well-suited for demanding applications where heat resistance is necessary.

Soldering and Safety

When soldering, a temperature range of 400°C to 480°C is required. Please note that appropriate fume extraction must be employed during the soldering process to ensure that safety levels are not exceeded and to maintain a safe working environment.

Physical Specifications

• Diameter: 1mm (19swg)
• Conductor Area CSA: 0.66mm²
• Spool Dimensions: 42.5 mm (H) x 32.5 mm (W) x 25 mm (D)
• Weight: 525 grams

Ideal for hobbyists and professionals alike, this enamelled copper wire provides a dependable solution for all your coil winding and prototype assembly needs.
