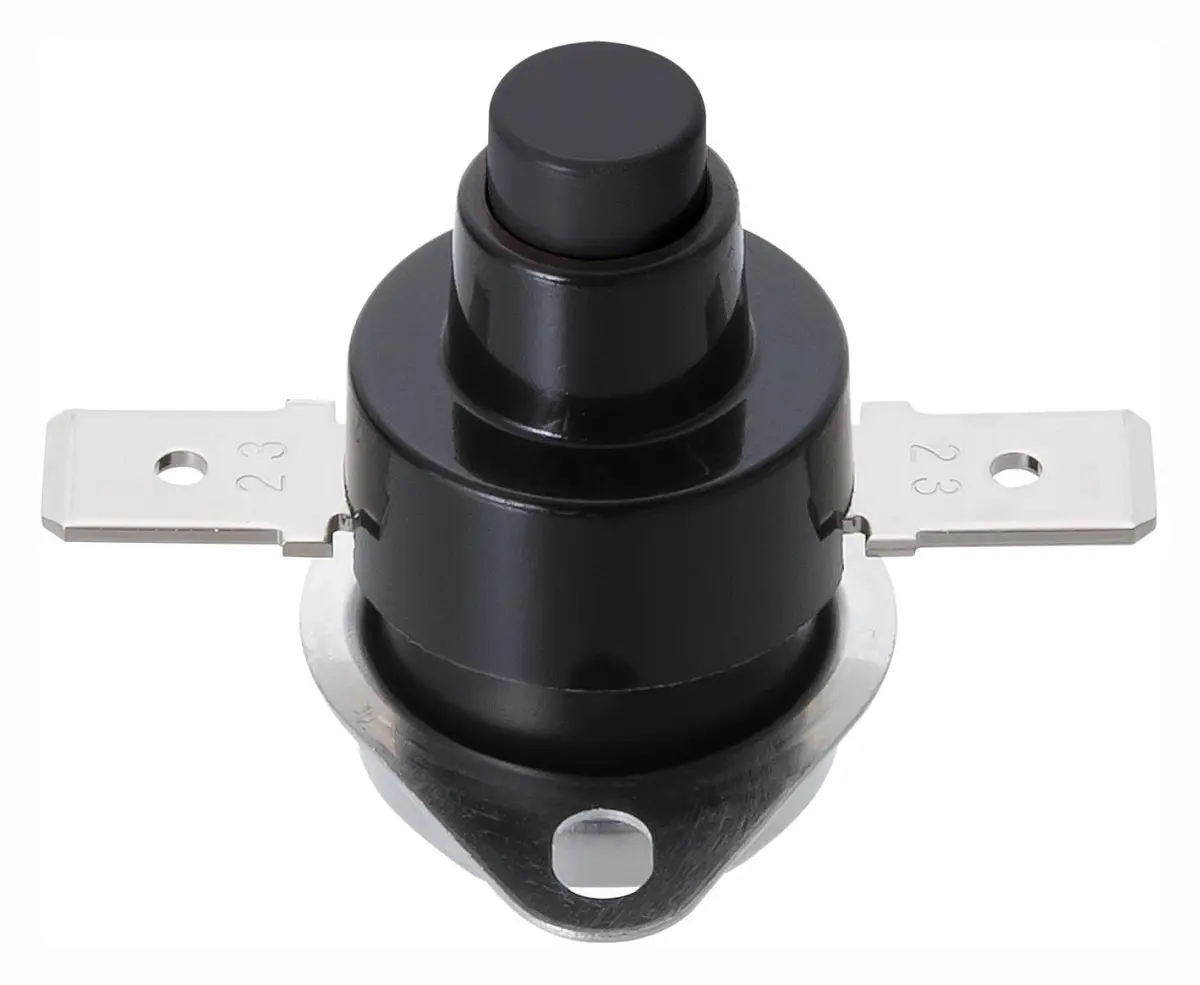

Multicomp Pro Flanged Thermal Switch NC 80°C 10A 240V AC

This 1/2 inch disc type, normally closed flanged thermostat switch features a switching temperature of 80°C. Designed for hot and cold air circulation systems, it operates with a single-pole, single-throw (SPST) manual reset mechanism. The contacts open on temperature rise and do not reset automatically, ensuring safety by requiring manual intervention before the system can resume operation.

The switch is built with a phenolic resin case and button, paired with a stainless steel bracket for secure flange mounting. The contacts are made from a silver-nickel alloy, providing reliable electrical performance. It features quick connect sensor terminals for straightforward installation.

Electrical Ratings and Standards

• UL, C-UR Rating: AC 120V/15A, AC 240V/10A (6,000 cycles)
• VDE Rating: AC 250V/16A (3,000 cycles)
• Insulation Resistance: Not less than 1,000Mohm at DC500V
• Dielectric Strength: Not less than AC 1,500V for 1 minute or AC 1,800V for 1 second

Compliant with standards including UL 873, C-UR, DIN EN 60730-1, and DIN EN 60730-2-9. With compact dimensions of 33mm in height, 22mm in width, and 2mm in depth, and weighing just 7 grams, this thermal switch is suitable for precise integration into various heating and cooling applications.
