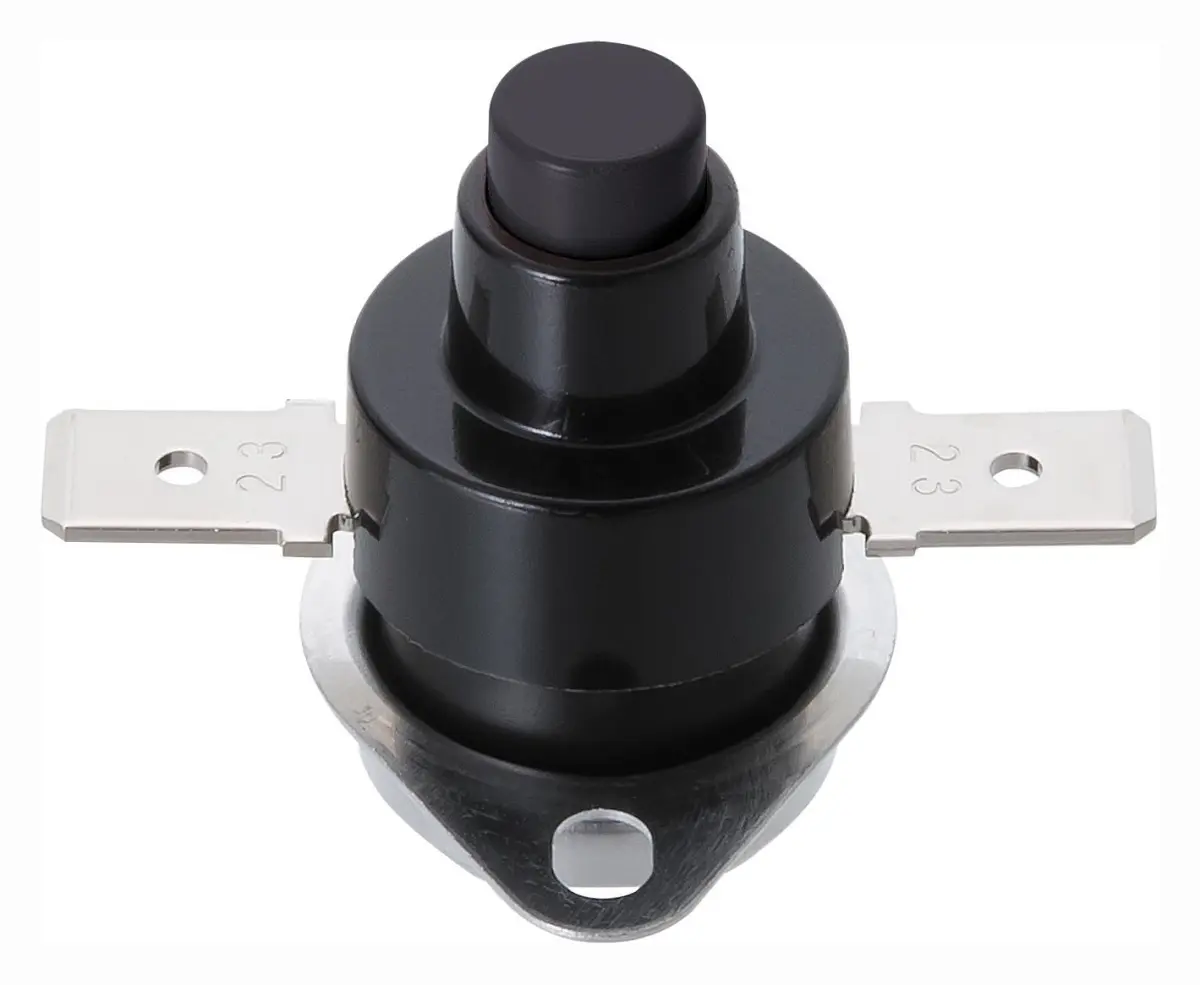

Multicomp Pro Flange Thermal Switch Normally Closed 56°C 240V AC 10A

The Multicomp Pro MP-23EN-56DEG-NC is a precision-engineered flange-mounted thermal switch designed for reliable temperature control in a wide range of applications. This thermostat switch features a normally closed contact operation, making it suitable for circuits that require power to be cut when the temperature exceeds the set point.

With a switching temperature of 56°C, this thermal switch provides accurate and consistent over-temperature protection. The switch is rated for 240V AC at 10A and 120V AC at 15A, ensuring versatility across various electrical loads. The flange mount housing allows for secure and straightforward installation onto flat surfaces, while the quick connect terminals simplify wiring.

This thermal switch is ideal for use in equipment where temperature monitoring is critical, such as in heating appliances, power supplies, and motor protection circuits. Its compact design, with a height of 33mm, width of 22mm, and depth of 2mm, makes it easy to integrate into space-constrained assemblies.

Specifications

• Switching Temperature: 56°C
• Contact Operation: Normally Closed
• Contact Rating: 120V AC/15A, 240V AC/10A
• Sensor Terminals: Quick Connect
• Sensor Housing: Flange Mount
• Product Range: MP-23EN
• Height: 33mm
• Width: 22mm
• Depth: 2mm
• Weight: 7g
