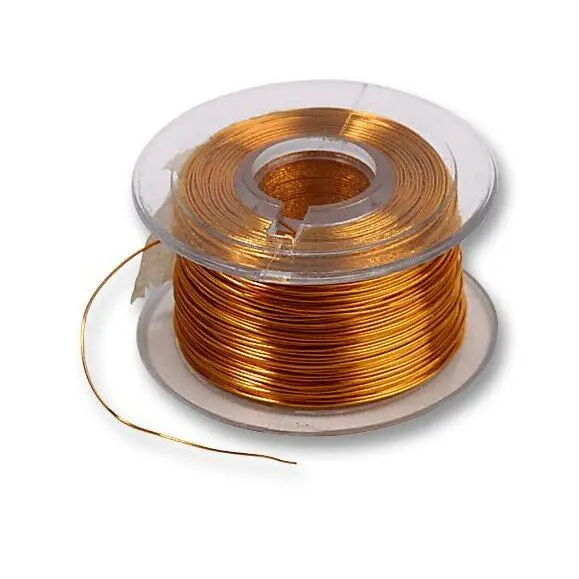

Multicomp Pro Insulated Wiring Pencil, Copper, 36AWG, 4 Pack

The Multicomp Pro Insulated Wiring Pencil contains four high-quality, solderable enamelled copper wires, coated in a self-fluxing polyurethane insulation. This advanced coating, which conforms to the rigorous BS4520 Grade 2 standard, simplifies soldering by eliminating the need for separate flux, making it an indispensable tool for precision electronics work. The transparent jacket allows for easy wire identification, while the solid 36AWG copper conductor provides reliable electrical performance.

Specifically designed for intricate tasks, this wire is perfect for prototype wiring, repairing damaged PCB tracks, creating shorting links, and forming small coils in transformers and inductors. To ensure a successful solder joint, the enamel insulation requires removal at a temperature of 400°C or higher, with the optimal soldering temperature ranging from 400°C to 480°C. This makes it compatible with most professional soldering stations.

Packaged in a convenient pencil-style dispenser, it offers excellent organisation and protection for the delicate wire. The robust construction of the pack ensures the wire remains tangle-free and readily accessible, streamlining your workflow. With a high voltage rating of 1500VAC, it is suitable for a wide range of low-current applications where both precision and reliability are critical.

Specifications

• Wire Gauge: 36 AWG
• Conductor Material: Solid Copper
• Insulation Material: Self-fluxing Polyurethane (PU)
• Insulation Colour: Transparent
• Conductor Area (CSA): 0.029mm²
• Voltage Rating: 1500VAC
• Pack Quantity: 4
• Pack Dimensions: 42.5mm (H) x 32.5mm (W) x 25mm (D)
• Pack Weight: 41 grams

Ideal for engineers, technicians, and hobbyists, this wiring pencil is a professional-grade solution for clean, efficient, and reliable soldering connections in electronic assemblies.
