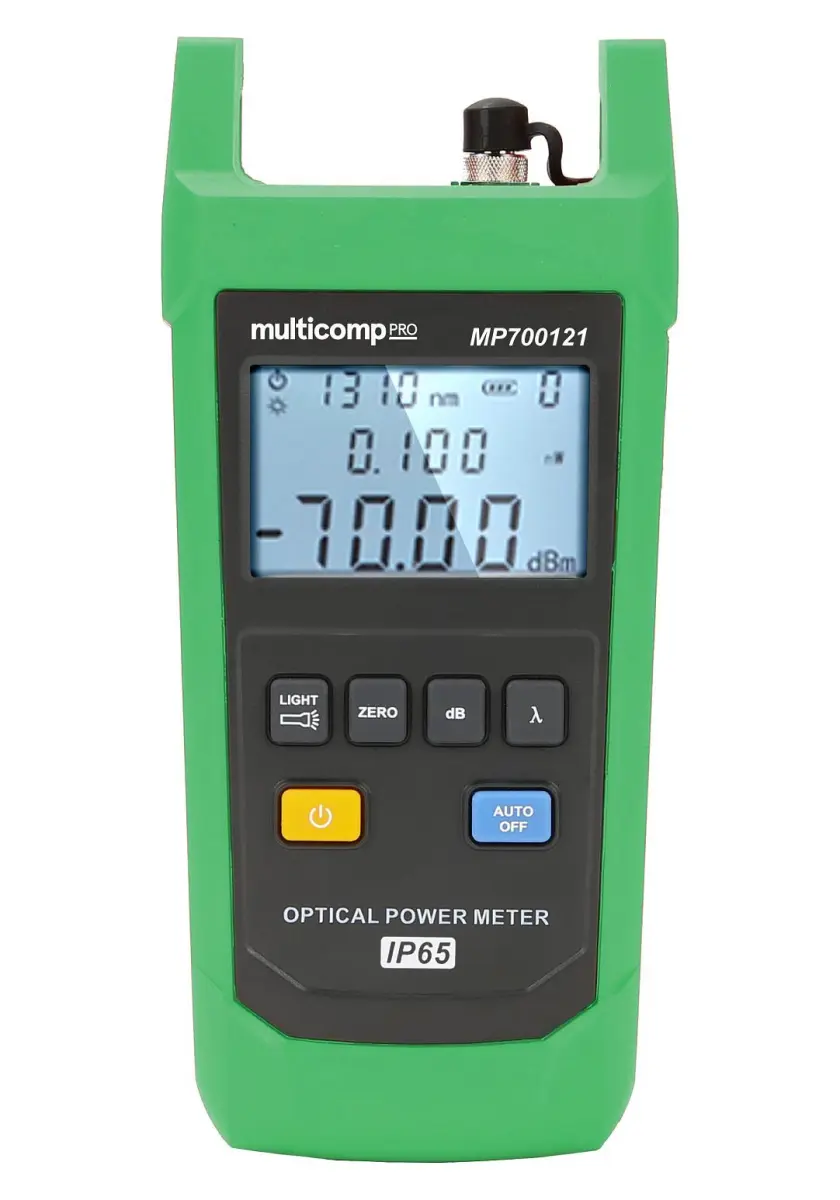

Multicomp Pro MP700121 Handheld Fibre Optic Power Meter, -70 to +10dBm

The Multicomp Pro MP700121 is a rugged and reliable handheld optical power meter, engineered for precision measurement of absolute optical power and relative loss in fibre optic cables. Its robust design withstands challenging environments, featuring an IP65 dust and water resistance rating and durability proven by a 2-metre drop test, making it a dependable tool for fieldwork.

The device boasts an ultra-wide optical power test range from -70 to +10dBm across an extensive 800~1700nm wavelength spectrum. Its clear backlight display simultaneously shows linear (mW) and non-linear (dBm) readings, while user-friendly functions like wavelength store and recall, a built-in flashlight, and a 10-minute auto power-off enhance operational efficiency. The InGaAs detector type ensures accurate readings with a ±5% uncertainty.

Versatile in application, this power meter is essential for cable construction, maintenance, and the evaluation of optical equipment. It serves critical roles in the production, installation, operation, and maintenance of fibre optic transmission systems, proving invaluable for optical engineering, laboratory work, and facility maintenance tasks.

Key Specifications & Features

• Measurement Range: -70 to +10dBm
• Wavelength Range: 800 ~ 1700 nm
• Detector Type: Indium Gallium Arsenide (InGaAs)
• Calibrated Wavelengths: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm
• Display Resolution: Linear: 0.1%; Logarithmic: 0.01dBm
• Interfaces Supported: FC, SC, and ST (FC adapter included)
• Durability: IP65 rated (dustproof and waterproof), withstands a 2-metre drop test
• Power: Operates on 3x AA alkaline batteries (approx. 60 hours), with low battery indication and auto power-off
• Environmental: Operating temperature 0°C to 40°C; Storage temperature 10°C to 50°C
• Dimensions: 189 x 87 x 45 mm (
