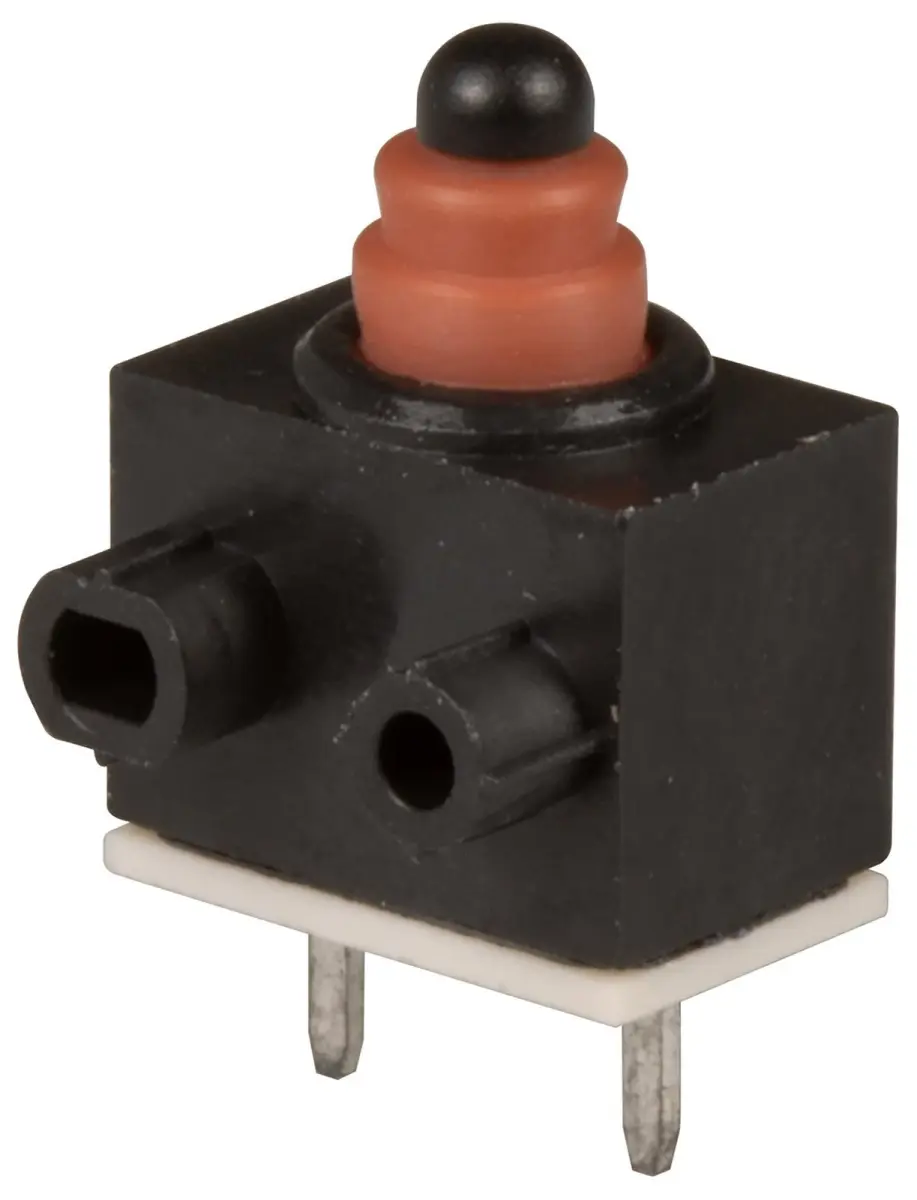

Multicomp Pro PCB Detector Switch, SPST-NO, 12V, 100mA

The Multicomp Pro MPTE-11S1V1 PCB Detector Switch is designed to detect the presence or absence of an object or target within its sensing range. This momentary switch is commonly used in automation, security systems, robotics, and various industrial applications to detect the position, movement, or proximity of objects without physical contact. Its versatility, sensitivity, and non-contact operation make it an ideal choice for applications requiring precise object detection and proximity sensing.

Featuring a normally open (SPST-NO) contact configuration, this detector switch operates with a rated current of 0.1A and a rated voltage of 12V DC. It boasts an operating force of 1 ±0.5N and a minimum operating life of 300,000 cycles, ensuring reliable performance over time. The switch has an initial contact resistance of 500 ohm maximum and a dielectric strength of 500V AC for one minute.

Designed to withstand demanding environments, the switch operates effectively within a temperature range of -40°C to +85°C and an air pressure range of 86 to 106kPa. With PC pin terminals for easy PCB mounting, this detector switch measures 43 mm in height, 33 mm in width, and 15 mm in depth, and weighs just 1g.

Key Specifications

• Contact Configuration: SPST-NO
• Rated Current: 0.1A (100mA)
• Rated Voltage: 12V DC
• Operating Force: 1 ±0.5N
• Operating Life: 300,000 cycles minimum
• Operating Temperature: -40°C to +85°C
• Terminals: PC Pin
