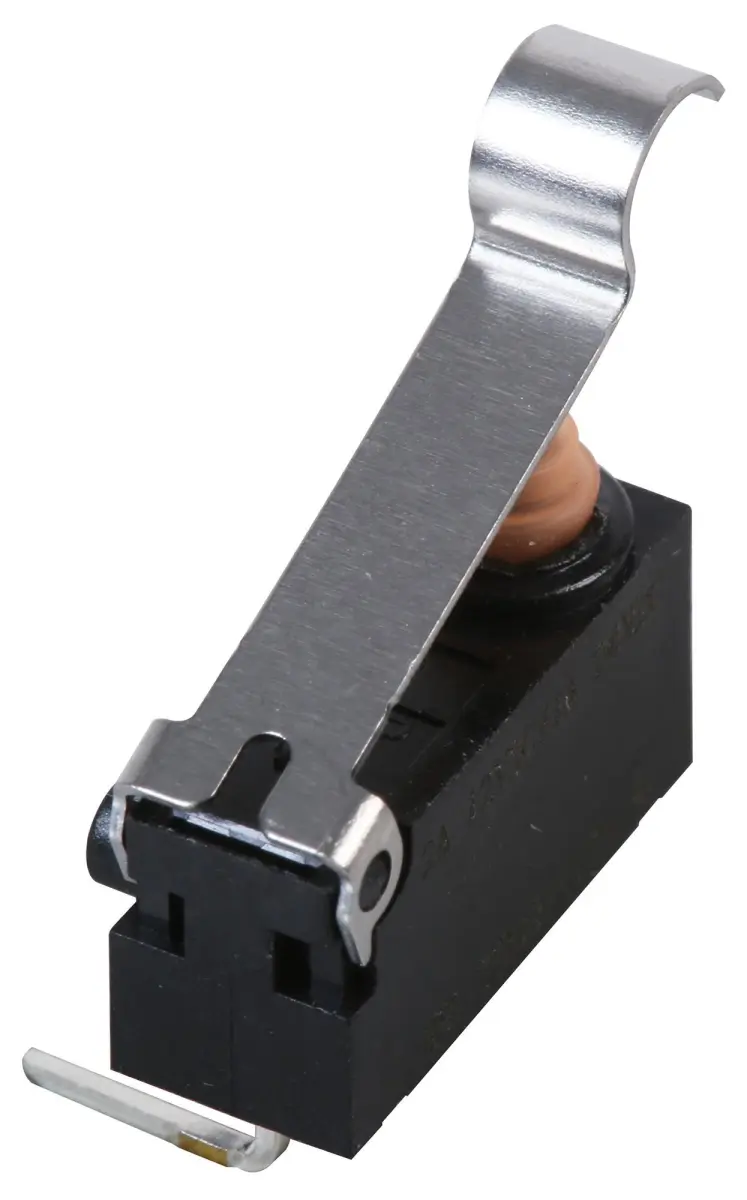

Multicomp Pro Simulated Roller Lever Microswitch, SPDT, 2A

The Multicomp Pro MP006235 snap action microswitch is a precision-engineered component designed for reliable switching in a wide range of applications. Featuring a simulated roller lever actuator and a short post on the left side, this switch delivers consistent performance with a modest operating force of just 66gf. Its compact dimensions (43mm x 33mm x 15mm) and lightweight construction (0.78g) make it an ideal choice for space-constrained installations.

This SPDT (Single Pole Double Throw) switch is rated for a maximum contact current of 2A at 12V DC, ensuring dependable operation in low-power circuits. The PC pin terminals on the left, angled at 90 degrees, facilitate straightforward soldering to printed circuit boards. The snap-action mechanism provides a crisp, tactile response and reduces contact bounce, enhancing overall circuit stability.

Typical applications include the automotive industry, household appliances, and vacuum cleaners, where durable and repeatable switching is essential. The switch’s robust construction and long mechanical life make it a cost-effective solution for high-volume manufacturing. Whether used for door interlocks, control panels, or safety cut-offs, this Multicomp Pro microswitch offers a dependable interface between mechanical motion and electrical control.

With a total travel position of 9.5mm, the actuator provides ample over-travel to accommodate various cam or lever designs. The simulated roller lever mimics the action of a true roller, reducing friction and wear in applications with sliding contact. Choose this microswitch for proven performance and easy integration into your next design.
