Multicomp Pro Thermal Switch, NO, 60°C
Automatic reset thermostat switch, normally open at 60°C. Ideal for HVAC and industrial control. Rated 10A at 250V.

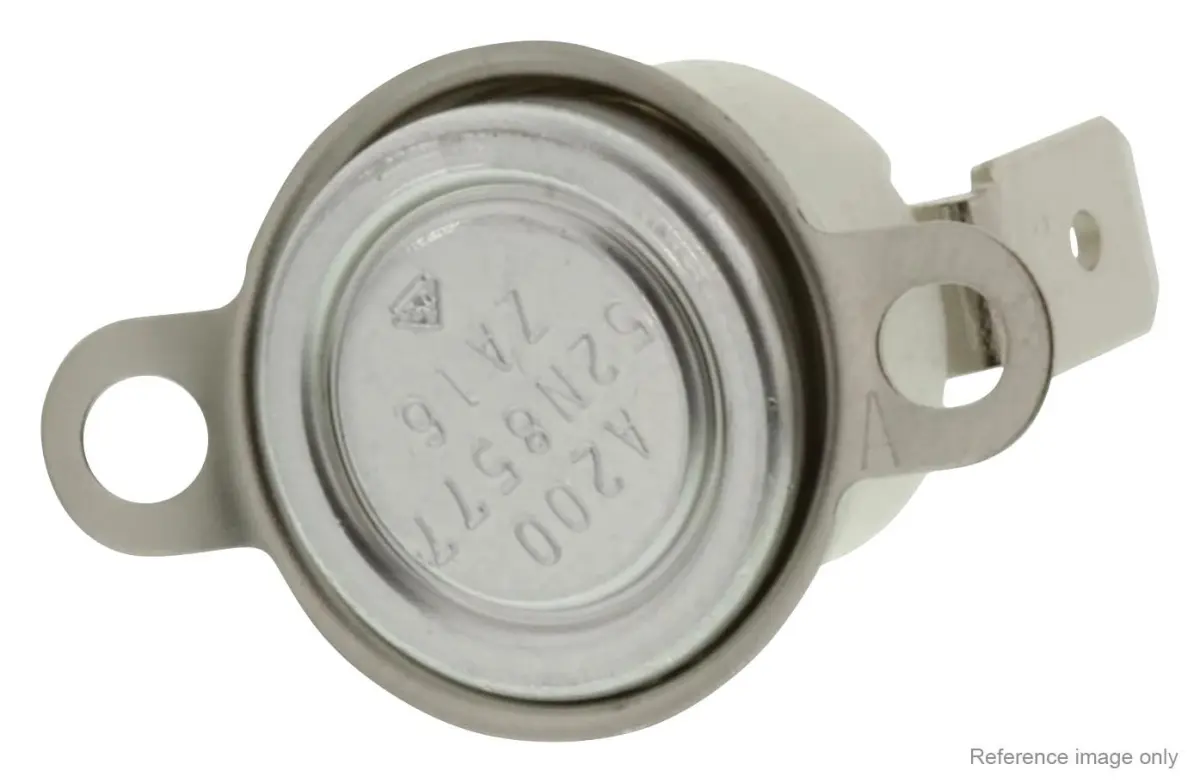

The Multicomp Pro Thermal Switch (MP-11-45/60/E111B14H22K) is a snap-action thermostat switch designed to regulate the temperature of a system or environment. It senses temperature changes at 60°C and activates or deactivates heating or cooling systems accordingly. This switch is normally open (close on rise) and operates at 250V AC with a 10A rating. It features an automatic reset function, ensuring reliable and continuous operation without manual intervention.
The switch is built with a phenolic housing and shield material, with a housing height of 12mm. It handles a maximum off temperature of 85°C and a maximum on temperature of 100°C. The rated current is 15/16 amps, and the terminal options include a 90° angle nickel-plated brass and a 0° angle nickel-plated brass (6.3x0.8mm). The set temperature is 60°C ±3°C and the reset temperature is 45°C ±4°C.
Applications
This thermostat switch is commonly used in heating, ventilation, air conditioning (HVAC) systems, appliances, and various industrial and commercial applications to maintain desired temperature levels. It is ideal for temperature controllers, industrial automation, and process control.
Features & Benefits
- Automatic reset thermostat for self-recovering operation
- Snap-action mechanism for precise and reliable switching
- Secure flange mounting to surfaces (notes included)
- Compact dimensions: 33mm height, 22mm width, 2mm depth, weighing only 5g
Specifications
- Switching Temperature: 60°C
- Reset Temperature: 45°C
- Contact Operation: Normally Open (N/O)
- Contact Rating: 10A at 250V
- Sensor Terminals: Quick Connect
- Sensor Housing: Flange Mount
- Product Range: MP Auto-Reset Thermostats N/O
