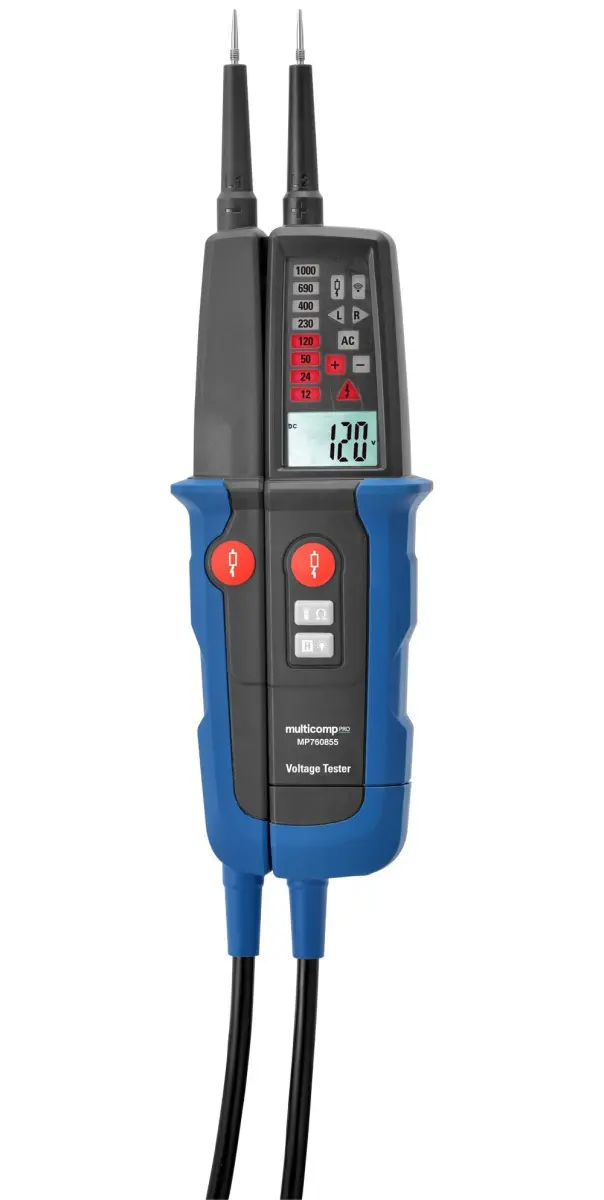

Multicomp Pro Voltage Tester 12-1000V AC/DC IP64

The Multicomp Pro Voltage Tester is an automatic, compact, reliable and robust instrument designed for ease of use. It measures AC/DC voltages up to 1kV and complies with EN 61243-3: 2014. Ideal for professionals in electrical testing, maintenance, and harsh environments.

Key Features

• Voltage Measurement: LED indication from 12V to 1kV AC/DC.
• Independent ELV Indicator: Alerts if >50V AC or >120V DC is present even if battery power fails.
• LCD Display: High-contrast backlit LCD with 8,000 counts and bar graph.
• Resistance Measurement: 0 to 1999 Ω with 1Ω resolution.
• Single-Pole Phase Test: Works even with gloves.
• Rotary Field Direction: Clearly indicates phase sequence.
• Continuity and Diode Testing: Audible beeper for continuity and phase.
• Switchable Load: Two push-buttons for low-impedance testing.
• Safety: CAT III 1000V / CAT IV 600V rated; IP64 dust and splash proof.
• Accessories: Includes two AAA batteries.

With a rugged design and double-insulated leads, this tester is built for reliable performance in demanding conditions. Its fixed impedance (300 kΩ) limits current to ≤3.5 mA at 1kV, ensuring safety without compromising accuracy.

Whether you’re troubleshooting industrial equipment, maintaining electrical systems, or checking portable devices, this voltage tester delivers accurate results with professional-grade durability.

Specifications

• Voltage Range (AC/DC): 12V to 1kV
• Display Type: LCD with backlight
• Resistance Measurement: 0–1999 Ω
• Operating Temperature: -10°C to +55°C
• Safety Rating: CAT III 1000V, CAT IV 600V
• Ingress Protection: IP64
• Dimensions (H×W×D): 43×33×15 mm
• Weight: 420 g
