NEUTRIK X Series Male XLR Plug, 3-Pole, Gold Contacts
Professional NEUTRIK male XLR plug with gold contacts, zinc die-cast shell & superior RF shielding for digital audio.

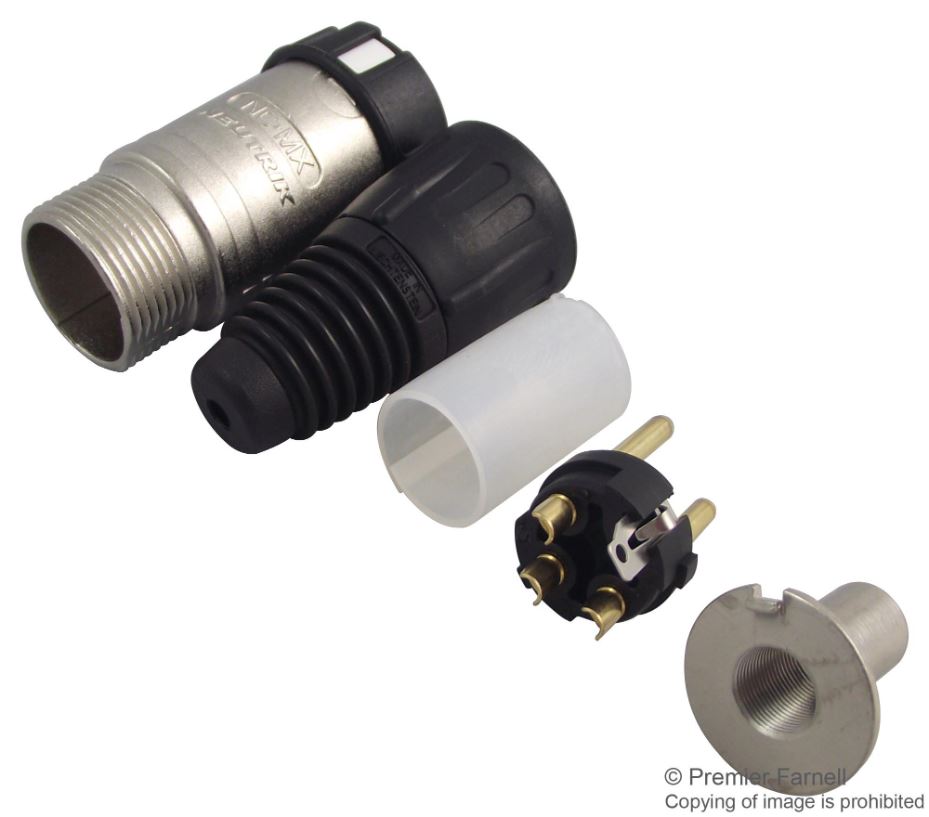

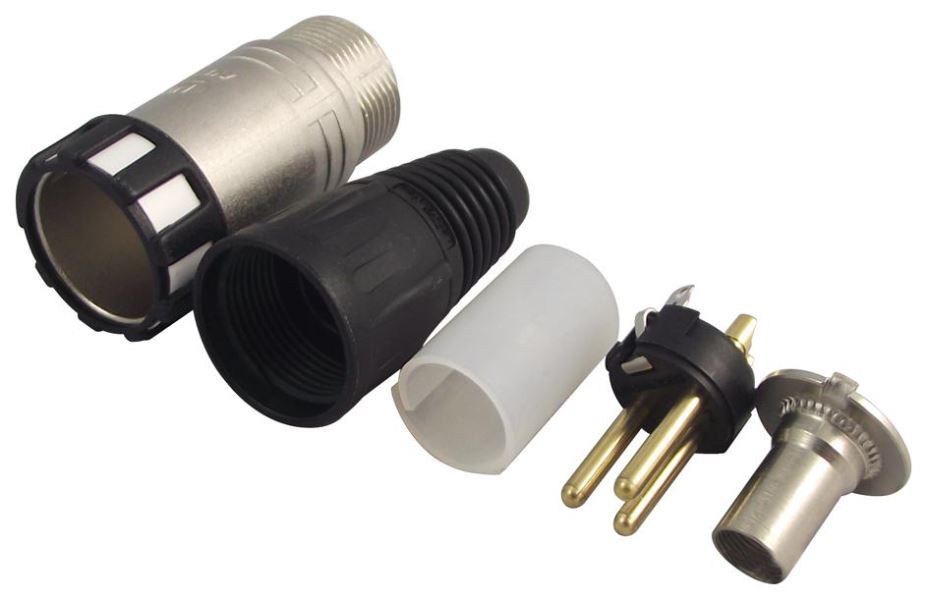

The NEUTRIK X Series Male XLR Plug (NC3MXCC) is a high-performance, 3-pole audio connector designed for professional audio applications. Its rugged zinc die-cast shell ensures long-lasting durability and excellent protection.
The circumferential shield contact provides superior RF shielding, making this XLR plug ideal for transmitting digital audio signals with high efficiency and reliability while offering best-in-class EMI protection.
Key Features
- Chuck-type polyacetal (POM) strain relief: Ensures secure clamping and strain protection for cables.
- Boot with rubber gland: Offers high resistance against bending stresses, enhancing cable longevity.
- XCCR coding ring: Indicates digital AES signals, included for convenience.
- Gold-plated brass contacts (CuZn39Pb3): Ensures superior conductivity and signal integrity.
This connector meets IEC 61076-2-103 standards and is UL-approved. With a dielectric strength of 1.5KVDC and a rated current of 16A per contact, it guarantees reliable performance under demanding conditions. The connector has a lifetime exceeding 1000 mating cycles, ensuring long-term usability.
Suited for professional audio and consumer electronics applications, this XLR plug is built to withstand rigorous use while maintaining signal clarity and durability.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
Technical Specifications
- Professional audio equipment
- Digital audio signal transmission
- Recording studios
- Live sound setups
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Material: Zinc die-cast shell with nickel plating
- Contact Material: Brass (CuZn39Pb3), gold-plated
- Insert Material: Polyamide (PA 6.6 30% GR)
- Strain Relief: Chuck-type polyacetal (POM)
- Boot Material: Polyurethane with rubber gland
- Coding Ring Material: PA 6 15% GR
- Dielectric Strength: 1.5KVDC
- Rated Current: 16A per contact
- Rated Voltage: < 50V
- Lifespan: > 1000 mating cycles
- Wire Size: Up to 14AWG (2.5 mm²)
- Flammability Rating: UL 94 HB
- Standards: IEC 61076-2-103, UL-approved
- Protection Class: IP 40
- Weight: 50g
