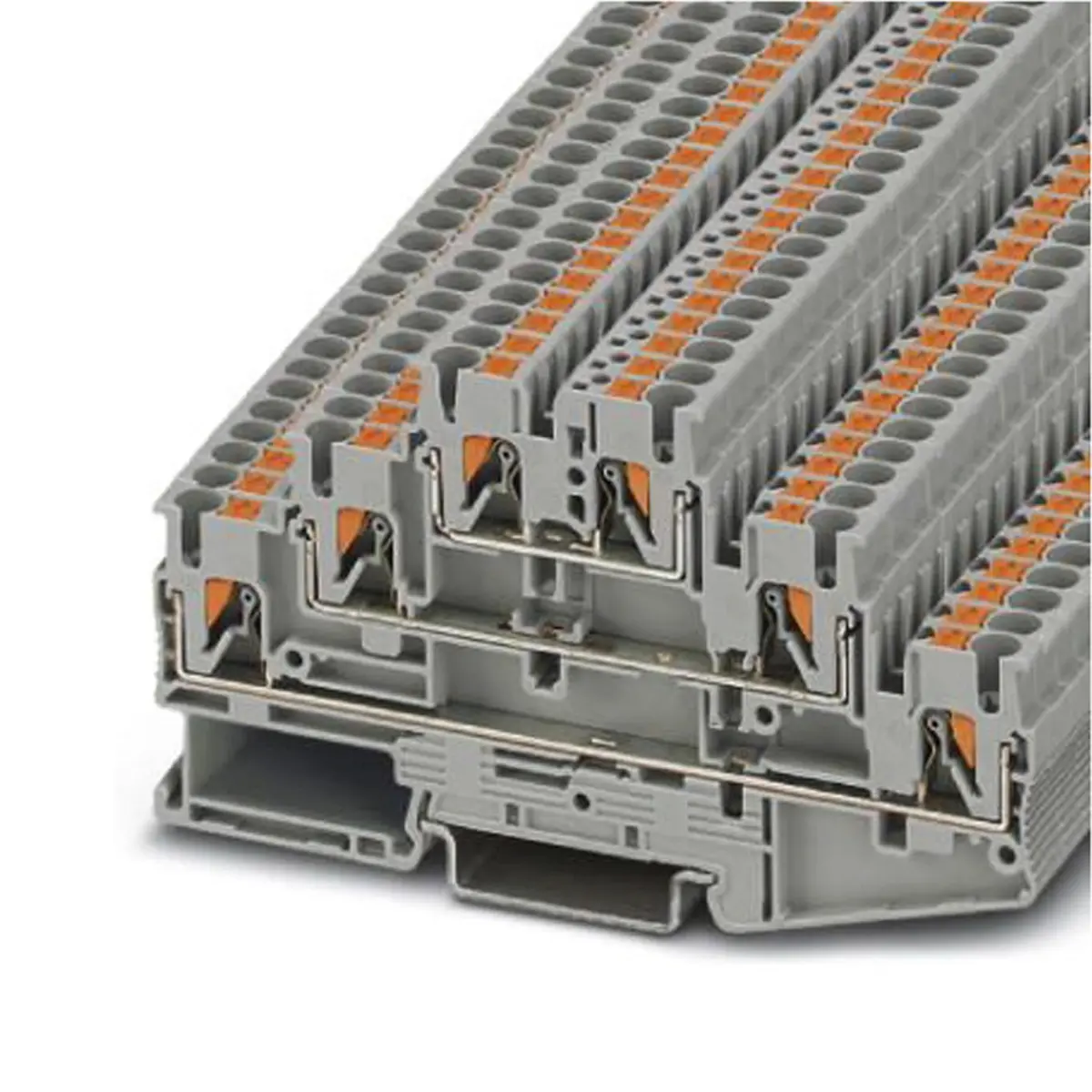

Phoenix Contact Multi-Level DIN Rail Terminal Block, 6-Way, 2.5 mm², Push In, 6

The Phoenix Contact multi-level DIN rail mount terminal block is a 6-way connection solution designed to maximise wiring density on your DIN rail. With its compact, stacked design, this terminal block allows you to terminate multiple circuits in a minimal amount of rail space, making it ideal for control panels and junction boxes where space is at a premium.

Featuring tool-free push-in connection technology, this terminal block ensures quick, secure, and reliable wiring for solid and ferruled conductors. It is rated for a nominal current of 20 A and accepts wire sizes from 26 AWG to 12 AWG (0.14 mm² to 2.5 mm²). Whether you are working on industrial automation, building services, or machinery, this terminal block simplifies installation and maintenance.

The product is manufactured by Phoenix Contact LTD, a trusted name in industrial connectivity. Its robust construction and clear marking options support organised and professional panel builds. The terminal block is suitable for use on standard 35 mm DIN rails (TS 35) and is compatible with a wide range of accessories, including end covers and partition plates.

Key Features

• Multi-level design (stacked) for high-density wiring
• Push-in connection for fast, tool-free termination
• Suitable for conductors from 26 AWG to 12 AWG (2.5 mm²)
• Rated current: 20 A
• Compact footprint: 43 mm height, 33 mm width, 15 mm depth
• Weighs only 18.26 g, reducing rail load
• Compatible with standard DIN rails (TS 35)

This terminal block is an excellent choice for electricians, panel builders, and maintenance engineers seeking a reliable and space-efficient wiring solution.
