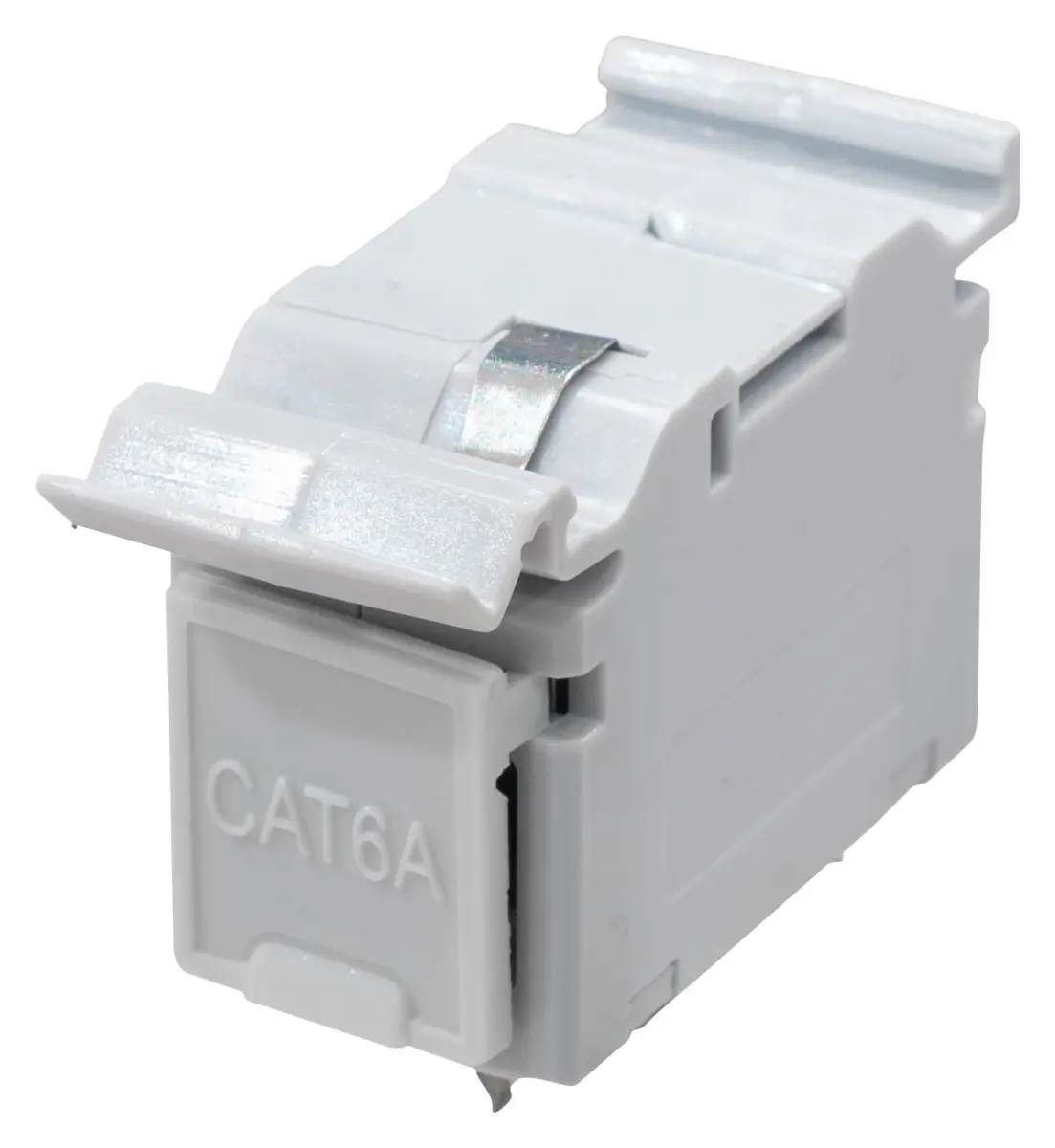

RJ45 Cat6a Compact Shielded Through Coupler, DIN Rail Mount

The RJ45 Cat6a Compact Shielded Through Coupler from TUK LTD is a high-performance inline adaptor designed for reliable network connections. Supporting Cat6a and Class EA standards, this screened feedthrough coupler ensures optimal signal integrity for demanding data applications. It is specifically engineered for mounting on DIN-Rail TH35 in accordance with DIN EN60715, making it an ideal solution for structured cabling in industrial and cabinet environments.

This versatile coupler is side-by-side mountable, allowing for efficient use of space within your enclosure. It features a built-in earthing spring for effective grounding and is 4PPoE compliant, supporting advanced Power over Ethernet applications. With a robust design offering a durability of 750 jack insertion cycles, it is built to withstand frequent connections. The coupler is supplied with a dust cover to protect the contacts when not in use.

Key Features and Specifications

• Connector Type: In-Line Adaptor
• Connections: RJ45 Jack to RJ45 Jack (8P8C)
• Orientation: Straight
• Shielding: Shielded / Screened
• IP Rating: IP20
• Dimensions: 43 mm (H) x 33 mm (W) x 15 mm (D)
• Weight: 24 grams

Whether you are extending network cables or terminating runs within a control panel, this DIN rail mount coupler provides a secure, space-saving, and compliant connection point.
