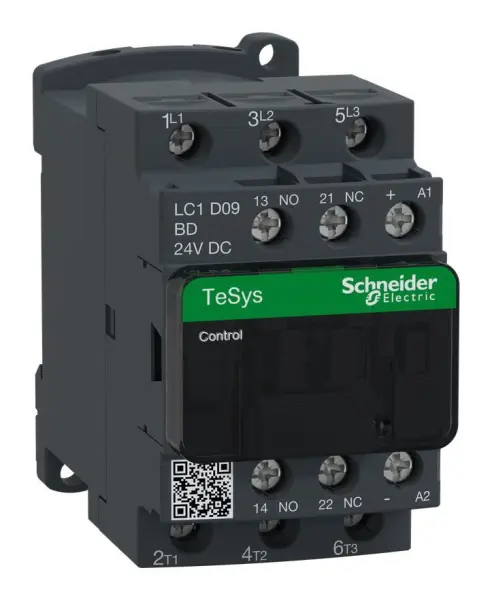

Schneider Electric TeSys D Contactor 24V DC 3Pole 9A

The Schneider Electric LC1D09BD is a high-performance 3-pole TeSys D Contactor, designed for flawless integration into modern industrial control systems. Operating with a 24V DC coil, this contactor is engineered for direct interfacing with computer or PLC outputs, eliminating the need for additional interposing relays thanks to its low-consumption DC coil and built-in transient suppression. This feature provides reliable, noise-resistant switching in sensitive electronic environments.

Constructed for durability and safety, it boasts a high-fault short circuit current rating, offering the flexibility to select system components confidently as long as they meet the required SCCR. The contactor is designed for easy DIN rail or panel mounting, making installation within control cabinets and industrial panels quick and straightforward.

Key Features & Technical Specifications

• Contact Configuration: 3PST-NO (Three-Pole, Single-Throw, Normally Open)
• Coil Voltage: 24V DC nominal
• Rated Operational Voltage: Up to 690V AC
• Load Current: 9A AC3 (inductive motor switching), 25A AC1 (resistive)
• Switching Power: 5.5kW AC3
• Impulse Withstand Voltage: 6kV rated for enhanced protection against voltage spikes
• Connection: Reliable screw clamp terminals for secure wiring
• Mounting: Compatible with standard DIN rails and panel surfaces
• Built-in Protection: Features a bidirectional peak limiting diode suppressor for coil protection

This robust contactor from the TeSys Deca series is an essential component for engineers seeking reliable motor control and power switching in demanding settings. Its compact design and high electrical ratings make it a versatile and trusted choice for automated systems.
