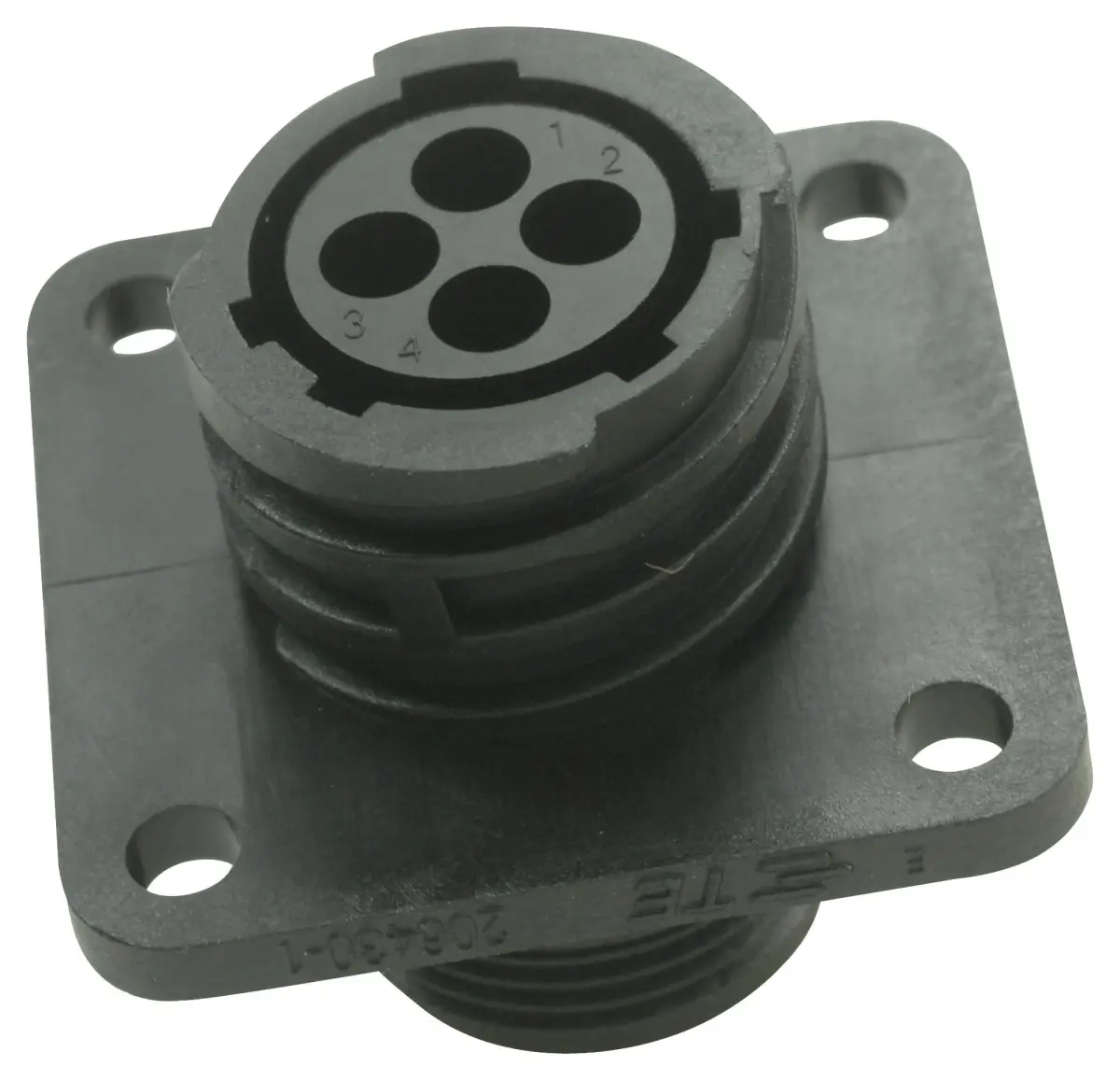

TE Connectivity 4-Way Circular Socket Receptacle Black IP65

The TE Connectivity 4-Way Circular Socket Receptacle is a robust and reliable power connector designed for demanding applications. Featuring a straight orientation and a black thermoplastic nylon housing, this flange mount receptacle ensures durability and secure panel mounting. It is engineered to provide a safe and efficient electrical connection in environments where reliability is critical.

This connector offers a 4-position configuration with crimp socket contacts (contacts not supplied). It features a shell size of 11 with a 5/8-24 UNEF-2A thread size, guaranteeing a precise and secure threaded coupling mating retention. The keyed mating alignment and flange with mounting holes facilitate straightforward installation, while the integrated mating retention adds an extra layer of security to the connection.

Built to withstand harsh conditions, the receptacle boasts an impressive IP65 rating, offering protection against dust and water ingress. It supports operating voltages of 600V AC and 600V DC. Furthermore, the thermoplastic body carries a UL 94V-0 flammability rating and performs reliably across a wide operating temperature range from -55°C to 105°C.

Key Specifications

• Product Range: CPC Series 1
• Number of Contacts: 4
• Shell Style: Flange Mount Receptacle
• Coupling Style: Threaded
• Operating Voltage: 600V AC, 600V DC
• IP Rating: IP65
• Operating Temperature: -55°C to 105°C
• Dimensions: 33.9 mm x 23 mm x 4.9 mm
• Weight: 5 grams
