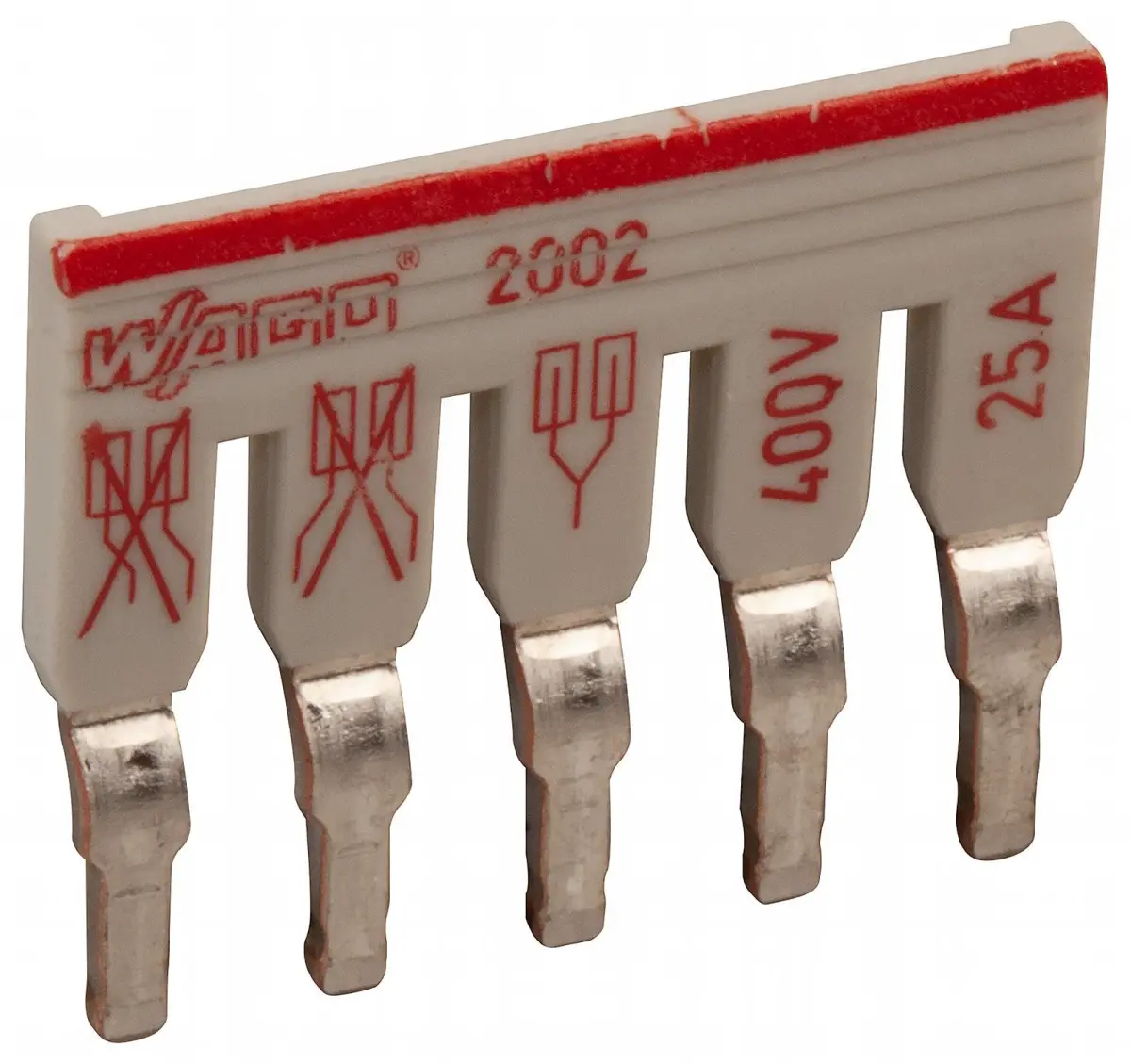

WAGO 2002 475 Insulated 5 Pin Staggered Jumper

The WAGO 2002 475 is a compact and highly efficient insulated jumper designed for bridging multiple electrical potentials within modern, dense wiring systems. Its unique staggered, ultra-slim design allows for the commoning of terminals 1 to 5 within a single jumper slot on the TOPJOB® S 2002 and 2003 Series terminal blocks, maximising space in control panels and automation enclosures.

Constructed with a durable, light grey insulated body, this jumper provides reliable electrical isolation while contributing to panel safety with its low fire load. It is robustly rated for 25 A and 400 V, with an impressive 6 kV impulse withstand capability, ensuring stable and dependable performance in demanding industrial and commercial applications.

Key Features & Benefits

• Space-Saving Staggered Design: The 24.7mm width is specifically optimised for single-slot bridging, enabling efficient multi-potential connections in high-density layouts without consuming extra space.
• Custom Configuration: Break-off contact lugs provide exceptional flexibility, allowing you to create custom staggered jumper configurations tailored to your specific wiring needs.
• Enhanced Safety: The insulated construction maintains proper creepage and clearance distances, and the material's low fire load (0.038–0.064 MJ) supports safer panel installation practices.
• Easy Installation: Weighing approximately 2.5 grams, the jumper is lightweight for easy handling and effortless, tool-free installation, speeding up assembly times.

Ideal for engineers and electricians, the WAGO 2002 475 jumper offers a versatile and reliable solution for creating common connections in control panels, PLC systems, power distribution assemblies, and various automation equipment, where both performance and space optimisation are critical.
