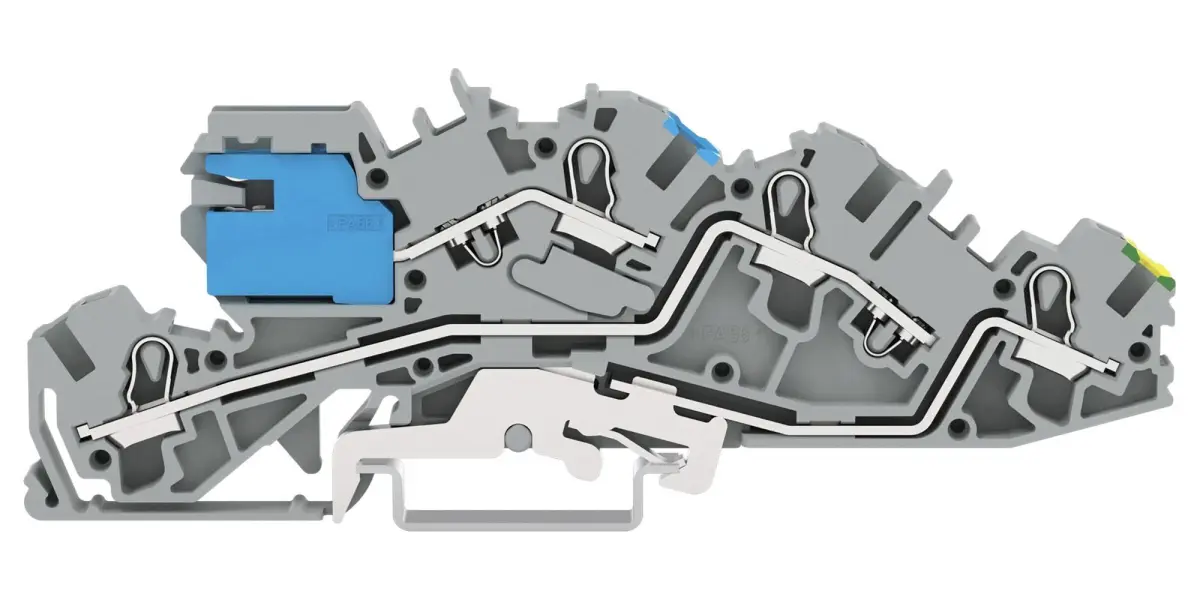

WAGO 4 Conductor Multi Level Terminal Block, Push In, 4mm², Grey

The WAGO 4 Conductor Multi Level Terminal Block is designed for efficient and secure wiring in industrial and electrical installations. Featuring advanced push-in CAGE CLAMP® technology, this terminal block ensures rapid, vibration-proof and maintenance-free connections, significantly reducing installation time compared to traditional screw terminals.

This 35mm DIN-rail mountable block offers four conductor positions across three levels, accommodating wire sizes from 20AWG to 10AWG (0.5mm² to 4mm²). With a nominal cross-section of 4mm², it supports a rated current of 32A and a rated voltage of 250V, making it suitable for a wide range of control and distribution applications.

The terminal block features an N-disconnect slide link, allowing for easy circuit isolation, and includes potential marking for NT/L/PE to aid clear identification. Its front-entry wiring design simplifies installation even in confined spaces, while the screwless connection system provides a reliable, maintenance-free connection.

Specifications

• Conductor Size: 0.5mm² - 4mm² / 20 AWG - 10 AWG
• Nominal Cross-Section: 4mm²
• Rated Current: 32A
• Rated Voltage: 250V
• Number of Positions: 4
• Number of Levels: 3
• Connection Method: Push-in (CAGE CLAMP®)
• Mounting: 35mm DIN rail
• Series: 2005-764x

This grey terminal block is a compact and robust solution for demanding electrical environments, ensuring safe and organised wiring.
